AF550

Ligature Resistant Art Frame #AF550

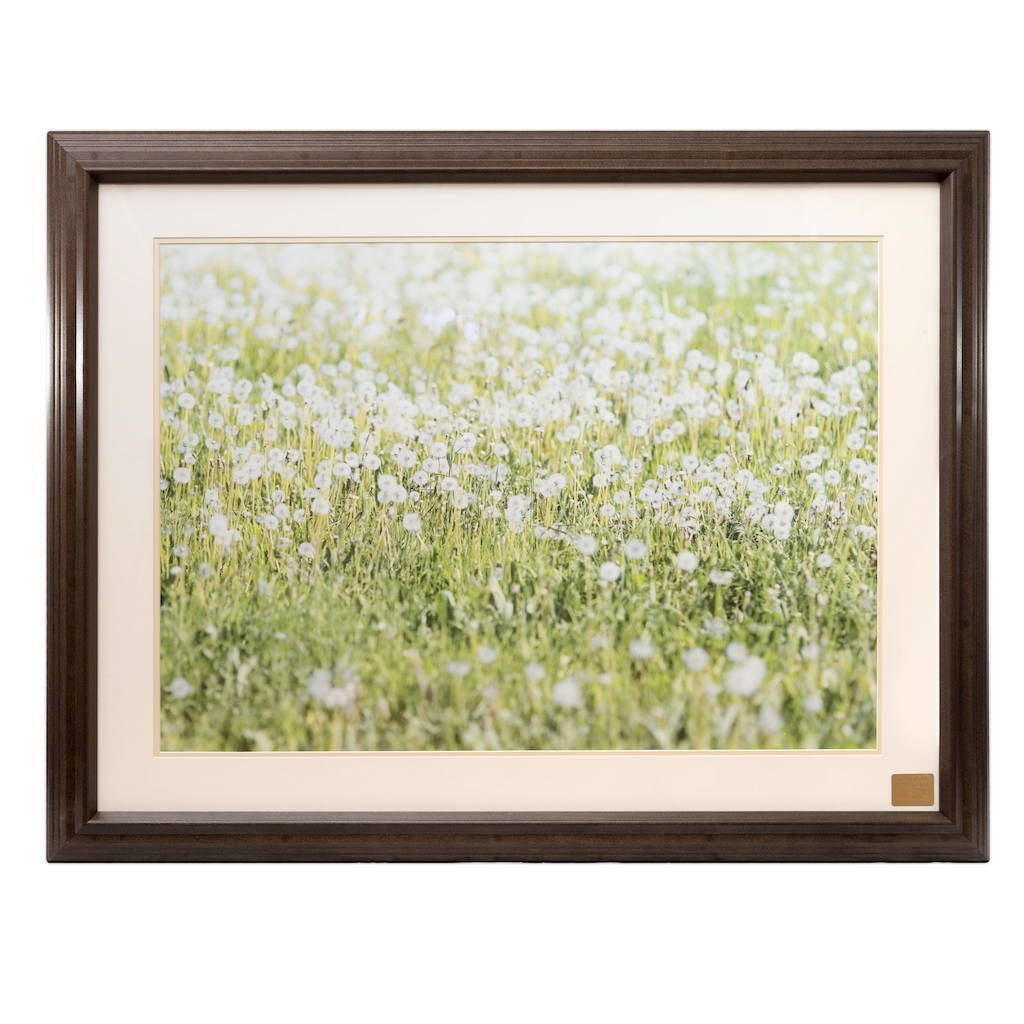

Ligature resistant picture frame featuring a serene image of a flower field, designed with safety features to prevent ligature while maintaining a calming aesthetic
Ligature Resistant Art Frame #AF550 - Image 2
Ligature Resistant Art Frame #AF550 - Image 3
Ligature Resistant Art Frame #AF550 - Image 4
Ligature Resistant Art Frame #AF550 - Image 5
Ligature Resistant Art Frame #AF550 - Image 6
Ligature Resistant Art Frame #AF550 - Image 7
Ligature Resistant Art Frame #AF550 - Image 8
Ligature Resistant Art Frame #AF550 - Image 9
Ligature Resistant Art Frame #AF550 - Image 10
Ligature resistant picture frame featuring a serene image of a flower field, designed with safety features to prevent ligature while maintaining a calming aesthetic

Ligature Resistant Art Frame #AF550

BSP took years of knowledge and over a year of development and testing to produce THE ORIGINAL LIGATURE RESISTANT PICTURE FRAME in our industry. The frame is designed to be abuse and ligature resistant. The profile of the frame is exceptionally distinctive, which accommodates both safety and style. The elegant appearance of our frame creates a “comfortable” feel for patients, making it anything but institutional. The print that you choose from our extensive online library (below) is matted just like a normal picture frame, but is then safeguarded by a 1/8″ polycarbonate facade to ensure that the print cannot be damaged. If you have art of your own that you would like placed in our frames, in most cases that can be accommodated. The frame comes prepped with recessed mounting holes for concealed fasteners (included) that are spaced at strategic locations to prevent tampering and a tight seal to the wall. Also included are tamper-proof pegs or dowel buttons for the mounting holes to conceal the fasteners themselves. The frame is available in three sizes and three colors, as well as over sixty prints of artwork to choose from. The complete frame package comes ready to place on the wall and is a strong addition to our product line.

CONTACT SALES

Uniquely From Us

THE ORIGINAL LIGATURE RESISTANT ART FRAME

The frame is designed to be abuse and ligature resistant.
BSP took years of knowledge and over a year of development and testing to produce the industry’s first ligature resistant frame.

Ligature Resistant - Designed To Deter Ligature

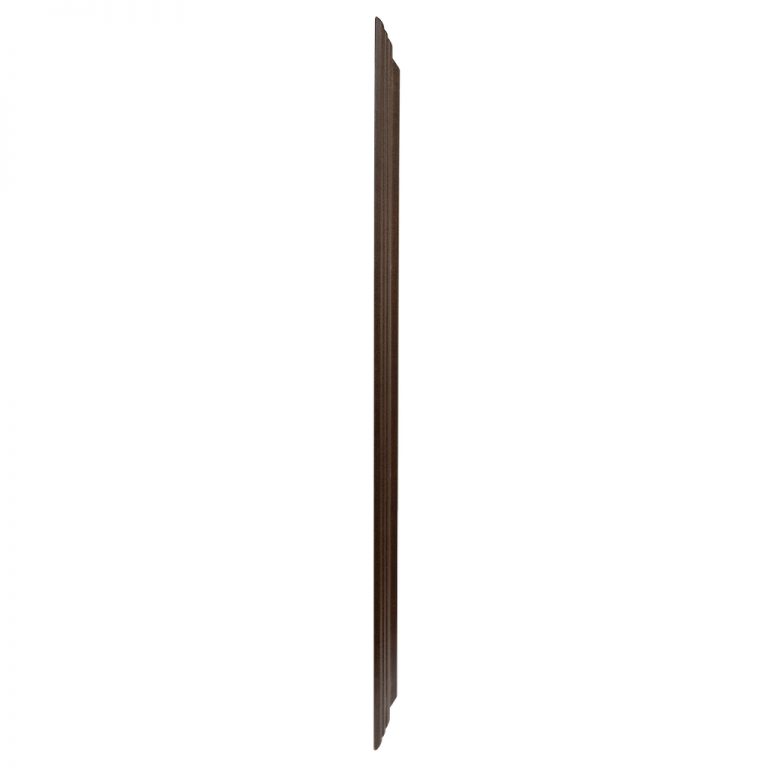

Exceptionally Distinctive PROFILE
The profile of the frame is exceptionally distinctive, which accommodates both safety and style.

Tamper Proof

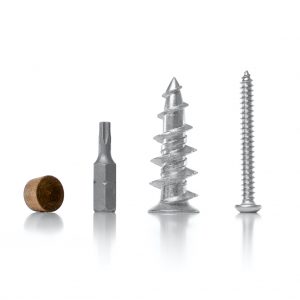

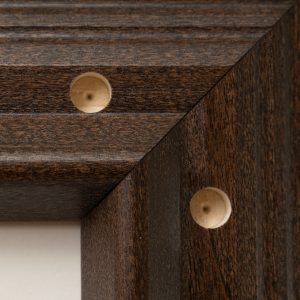

The frame comes prepped with recessed mounting holes for concealed fasteners that are spaced at strategic locations to prevent tampering and a tight seal to the wall.

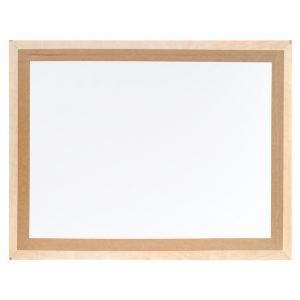

The backing consists of .375” MDF hardboard.
When assembled, the components are nailed together using 18ga steel brad nails 1–1.5” apart into the rabbet of the frame moulding.
The backing consists of .375” MDF hardboard.
The wood frame moulding is solid, natural poplar wood, and not a composite.
The matting is .055” thick paper pulp with a colored top sheet.
Glazing is .080” thick shatterproof polycarbonate.

Customizable

designED TO ACCOMMODATE ALMOST ANY DECOR

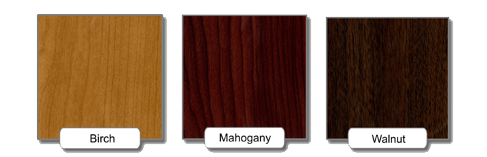

CHOOSE YOUR COLOR
Three frame colors to choose from

CHOOSE ANY PRINT

FROM OUR EXTENSIVE ONLINE LIBRARY

The print that you choose from our extensive online library is matted just like a normal picture frame, but it is then safeguarded by a ⅛ inch polycarbonate facade to ensure that the print cannot be damaged.
Browse from over 60 options in our library.

USE YOUR OWN ARTWORK

If you have art of your own that you would like placed in our frames, in most cases that can be accommodated as well.

CHOOSE FROM THREE SIZES
Available in 16”x20”, 20”x28”, and 24”x34”.

27″x31″ frame with 16″x20″ insert
31″x39″ frame with 20″x28″ insert
35″x45″ frame with 24″x34″ insert

The feeling of home

ELEGANT IN Appearance
The elegant appearance of our frame creates a comfortable feel for patients, making it feel anything but institutional.
Each frame is impact tested and once passed labeled with a gold seal.

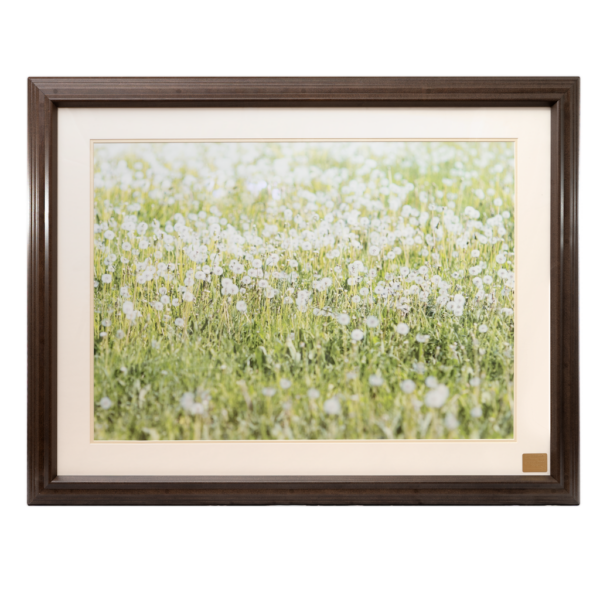

Ligature Resistant Art Frame - Front Angle

Ready to Hang

get your complete set
Ligature Resistant Art Frame - Front Angle

Available Sizes

  • Image Size of 16″x20″ with Frame Size of 27″x31″
  • Image Size of 20″x28″ with Frame Size of 31″x39″
  • Image Size of 24″x34″ with Frame Size of 35″x45″

Installation

get your complete set

Most walls have studs at varying centers as well as varying types. Therefore, we designed our Ligature Resistant Art Frame to use self-drilling drywall anchors. Because most behavioral facilities use fiber strengthened 5/8″ gypsum board, we recommend using the metal-type screw-in wall anchors. Install as follows:

  1. Set the frame in its location. Punch two small holes in the gypsum board through two of the predrilled holes in the frame, preferably at diagonal corners of the frame.
  2. Install two of the wall anchors in the holes made in the gypsum board. Attach the frame to the wall with two screws, but do not tighten firmly. Mark the wall through the balance of the holes.
  3. Take down the frame and install the balance of the wall fasteners. Reinstall the frame with all the fasteners screwed tight. Check the entire perimeter of the frame – especially the top to be sure it is tight to the wall.
  4. Caulk the edge of the frame with a caulk that finishes semi-hard, being sure it is tooled tightly to the wall. It is important that there are no gaps between the top of the frame and the wall, particularly the corners, in order to maintain ligature resistance. Paint the caulk, if desired, to match the wall.
