Revolutionizing Ligature Resistance in Hinge Design

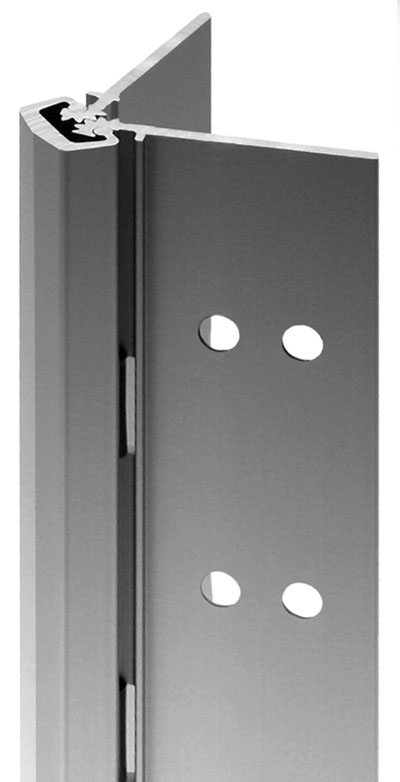

The DH430 Concealed Geared Continuous Hinge offers advanced ligature resistance, providing a tamper-proof barrier that fully closes the gap between door and frame. Key benefits include:
- Integrated Ligature Resistance: Built with a completely concealed design to eliminate ligature points, rust-proof and tamper-proof.
- Heavy-Duty Performance: Tested for high-frequency use, it can withstand doors up to 600 lbs with reinforced Rivnuts, dissipating energy along the entire hinge length to prevent wear.
Durable and Environmentally Friendly Construction
- High-Quality Aluminum: Made from extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings, and available in clear anodized finish for enhanced durability.
- Lifetime Lubrication: Gear capping eliminates periodic maintenance and provides quiet, long-lasting performance, even in high-traffic areas.
- Environmentally Sustainable: Meets LEED requirements, made from recycled aluminum and qualifying for LEED points.
Certified Safety and Fire Ratings
- ANSI and BHMA Standards: Certified ANSI/BHMA A156.26-2006 Grade 1 and tested to 25 million cycles for superior longevity.
- UL Fire Rating: Rated up to 90 minutes, and customizable for a 3-hour rating on compatible fire doors up to 4’x10’ for single doors and 8’x10’ for pairs.
Specifications
- Load Capacity: Supports 1-3/4” doors, up to 48” wide.
- Available Lengths: Offered in 83”, 85”, 95”, and 120” for various door heights.

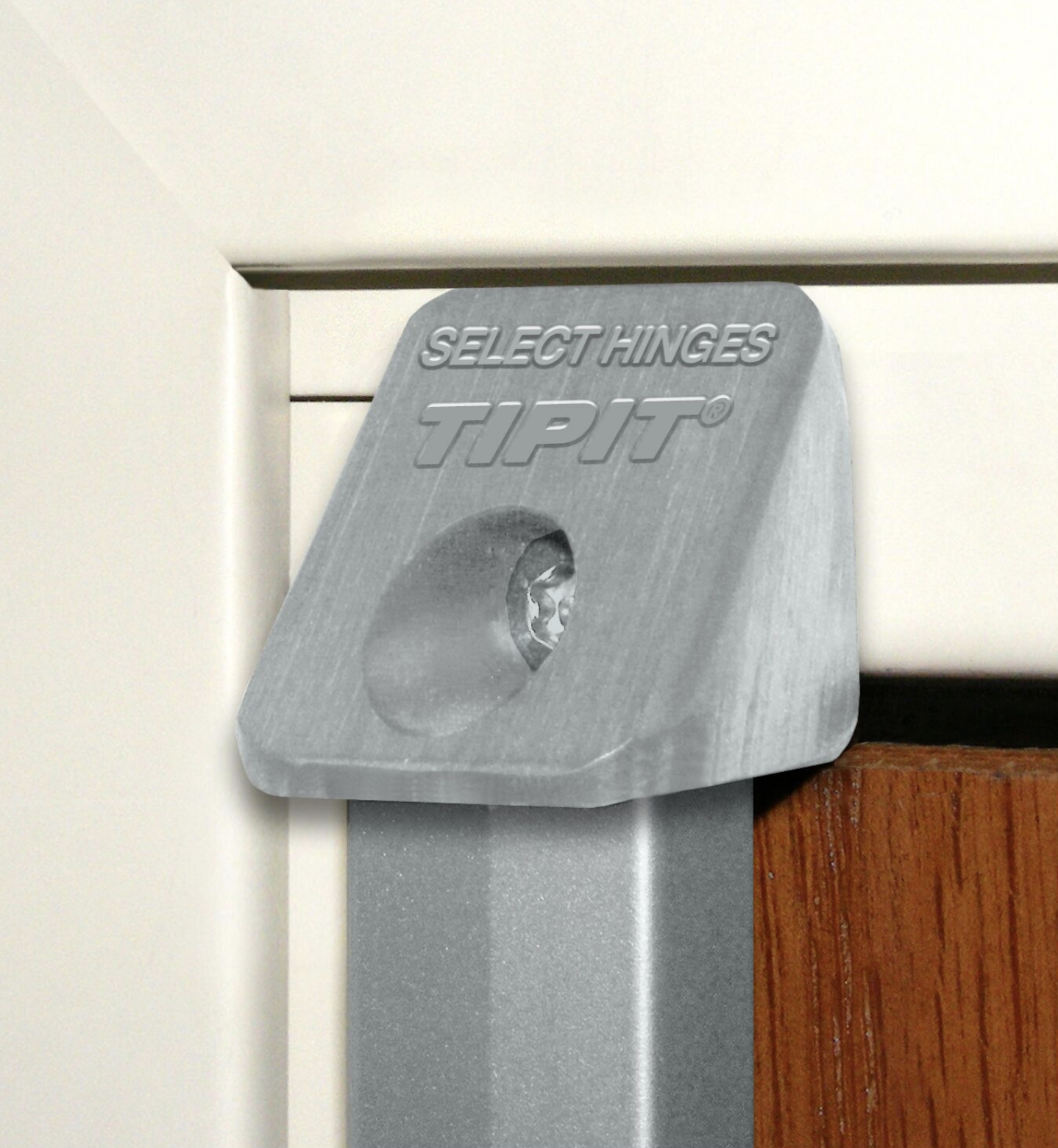

- Mounting Hardware: Comes with Torx security screws and TIPIT for secure, tamper-resistant installation.
