Ligature Resistant

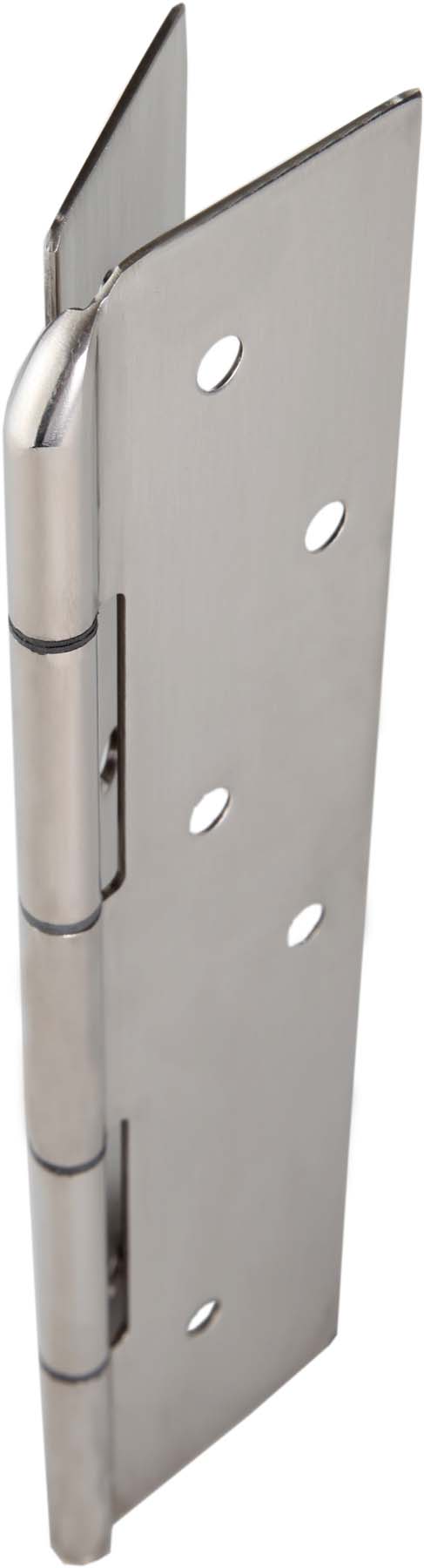

The DH460 Continuous Concealed Hinge is crafted to eliminate common ligature risks found in standard hospital tips, making it ideal for high-security applications. Key features include:
- Ligature-Resistant Hospital Tip: The gap between the barrel tip and hinge leaf is completely closed, eliminating the ligature point.
- Smooth and Sloped Tip Design: The hinge’s hospital tip is carefully smoothed and sloped to further reduce ligature risks.
Heavy-Duty Construction for High-Traffic Areas
- Supports High-Capacity Doors: Constructed from 14-gauge stainless steel, this hinge supports doors weighing up to 600 lbs and a maximum width of 48 inches.
- Tamper-Resistant Fasteners: Includes Pin Torx screws for secure installation, with all mounting hardware concealed when the door is closed.
Flexible Sizes and Reliable Certifications
- Multiple Length Options: Available in sizes for doors from seven to ten feet, with optional edge guard for additional protection.
- UL & ULC Fire Listed: Certified for fire-rated doors, including ratings of 20 minutes for wood doors, 90 minutes for hollow metal and composite, and up to 3 hours for hollow metal doors.
Specifications
- Material: Heavy-duty 14-Gauge 304 Stainless Steel in Satin Stainless (US32D) or Bright Stainless (US32) finishes.
- Door Compatibility: Fits 1-3/4” doors with a 1/8” inset, supporting up to 48” wide doors.
- OMH Approved: Certified by the New York Office of Mental Health (OMH) for behavioral healthcare use.
