Mounts in Any Direction
Our symmetrical non-handed design allows for mounting the grab bar in any direction; vertical, horizontal, angled, or 90-degree back to back corner installations are all possible using the same grab bar. This eliminates the need to buy specific and expensive vertical or corner grab bars for multi-purpose installations.
Symmetrical non-handed
Vertical, horizontal, angled or 90-degree back to back corner installations
Eliminates need for costly separate vertical or corner grab bars

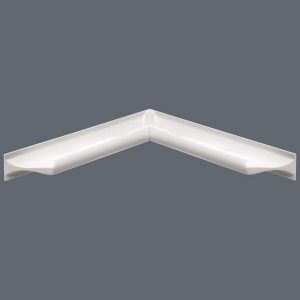

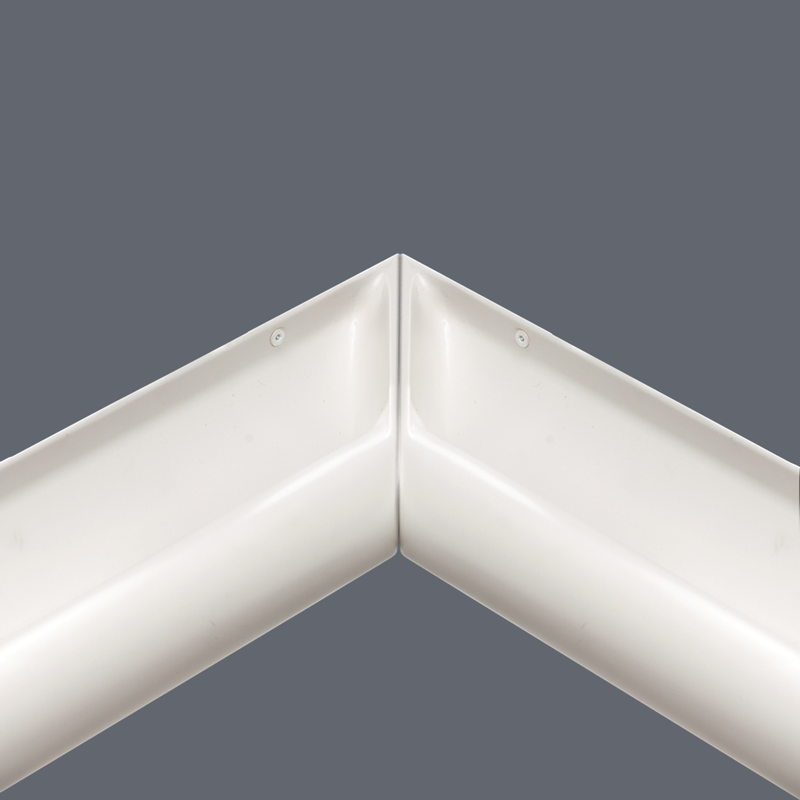

Corner

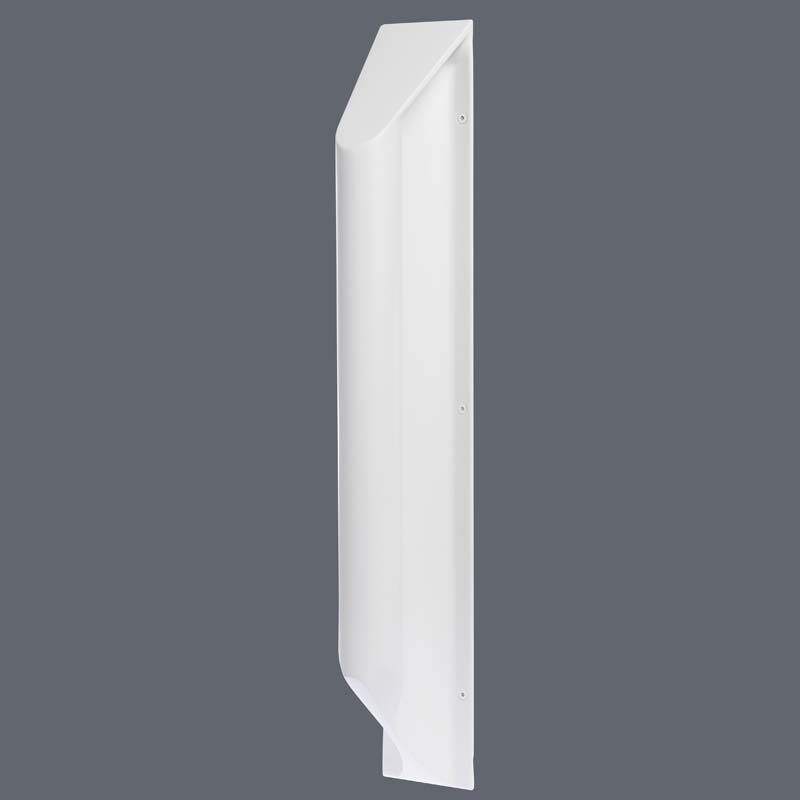

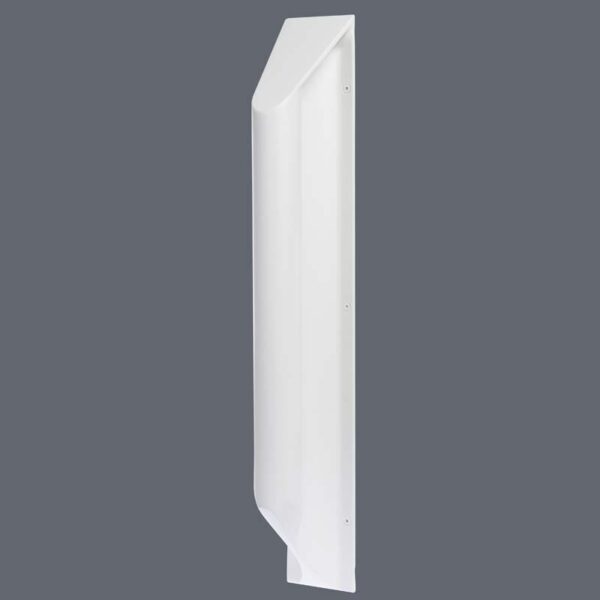

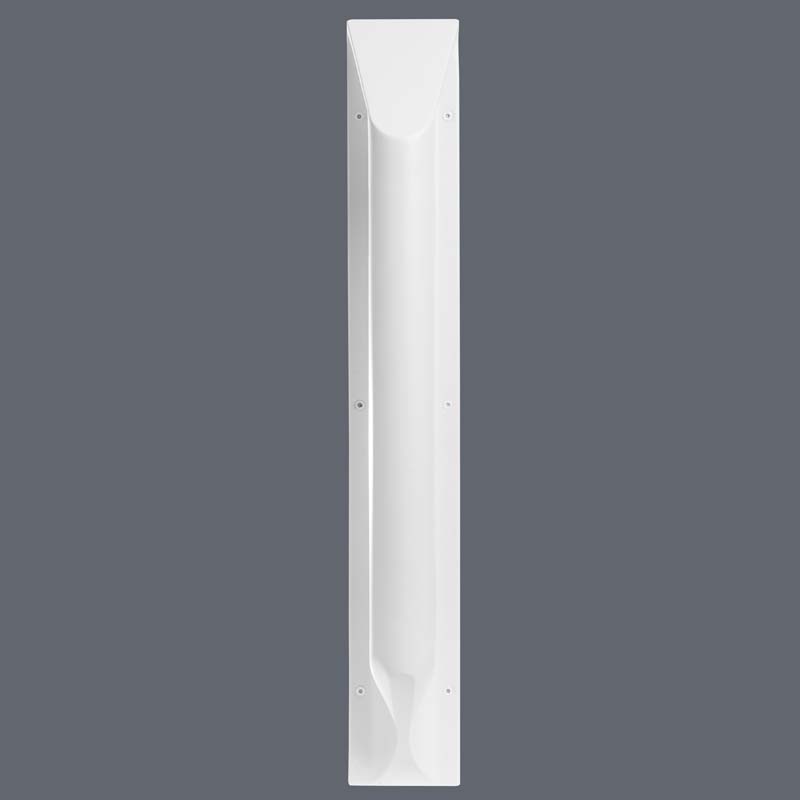

Vertical

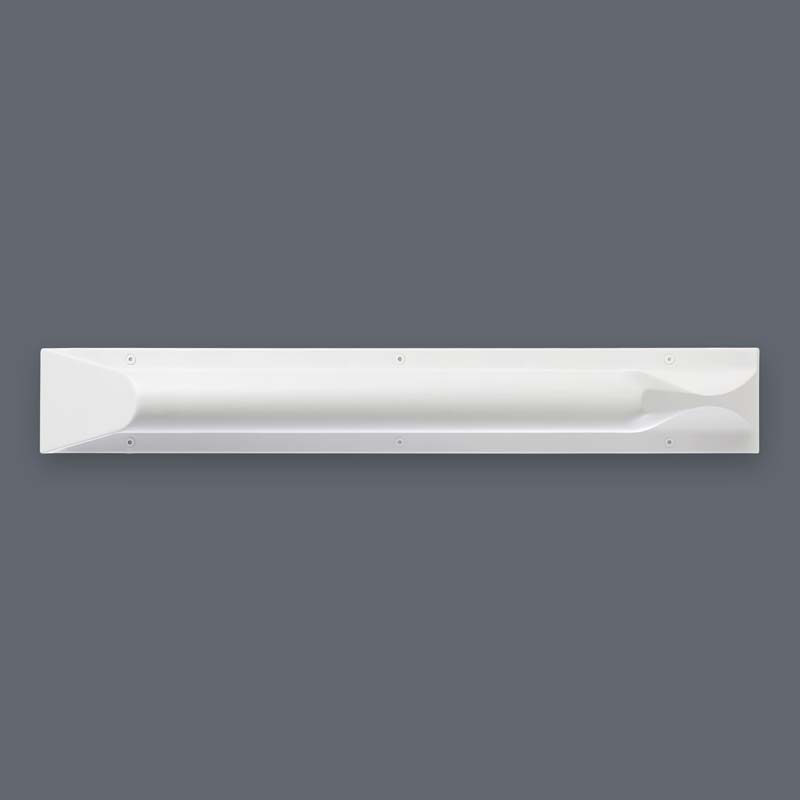

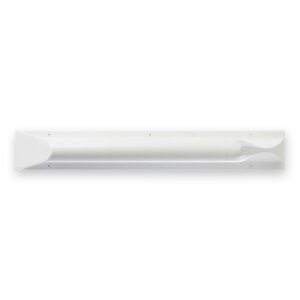

Horizontal

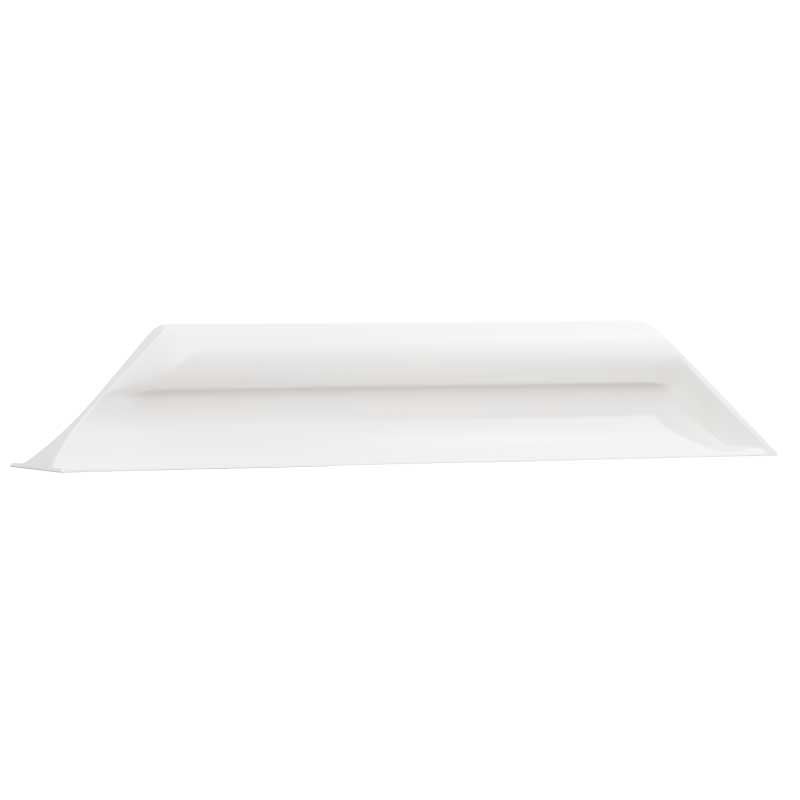

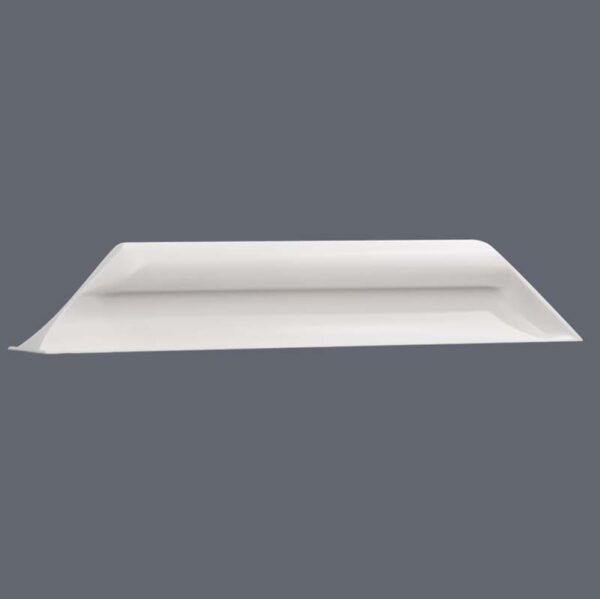

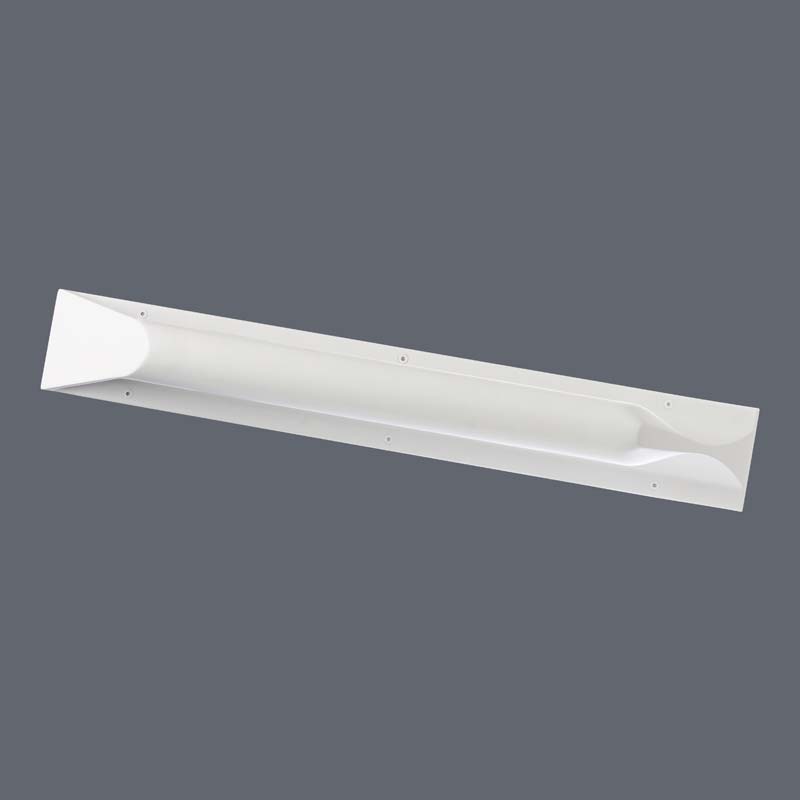

Angled
Infection Control
- No drain holes or internal gutter systems
- Throughout the design process, we optimized our grab bar to prevent water from trapping in any part of the unit.
- Because our grab bars meet heavy duty standards for psychiatric and behavioral applications, mounting should be accommodated to solid blocking in the walls in conjunction with pick-free caulk.
Self-Draining
- At one degree or greater slope
- The unit will self-drain when mounted horizontally in a negative one degree or greater slope.

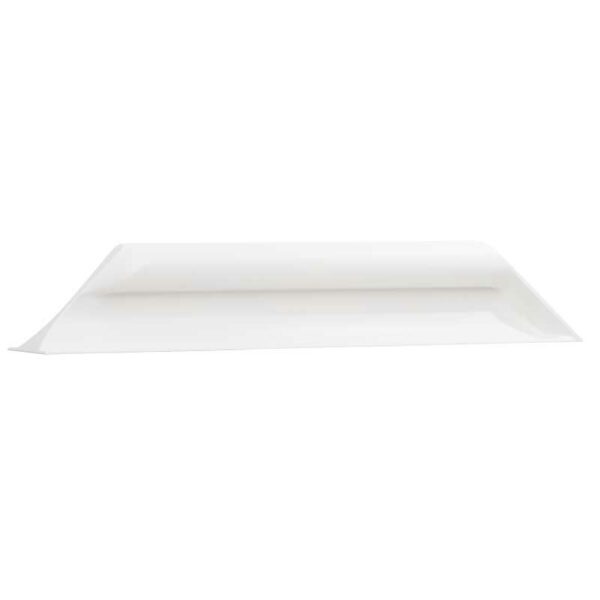

Clean with One Swipe
When mounted level, the GB730 can easily be wiped clean of any water with a single swipe of a cloth. For infection control, there are no drain holes or internal gutter systems in the design.
Noteworthy Engineering To Deter Ligature

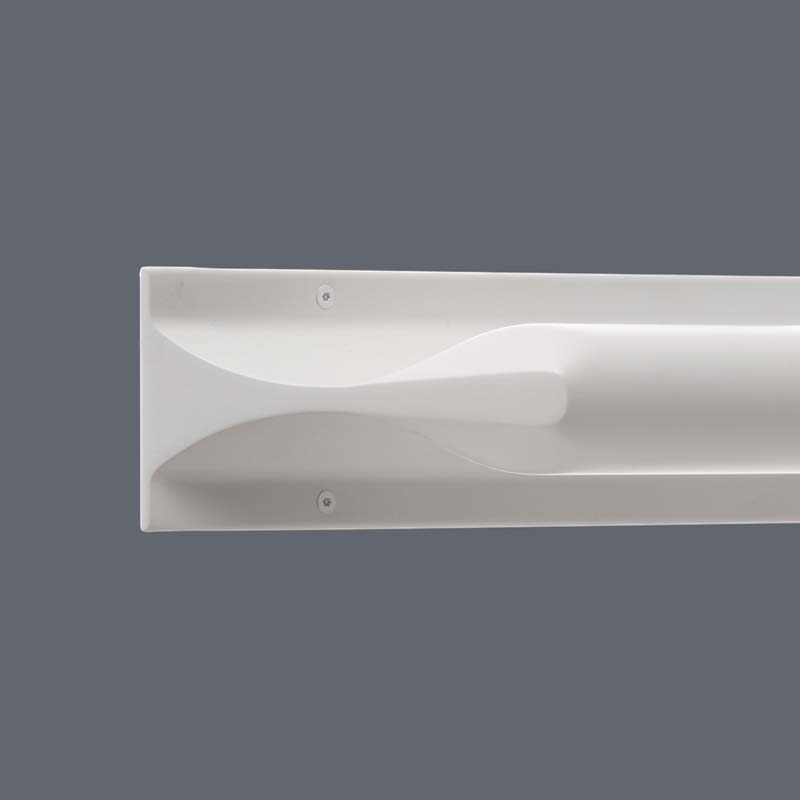

Meticulously designed, the open end of the GB730 is the catalyst for the other design features, deterring ligature as a whole, creating a versatile, all encompassing, ligature resistant grab bar.
Radiused Edges
To Deter Ligature
Tamper Resistant
Included Fasteners

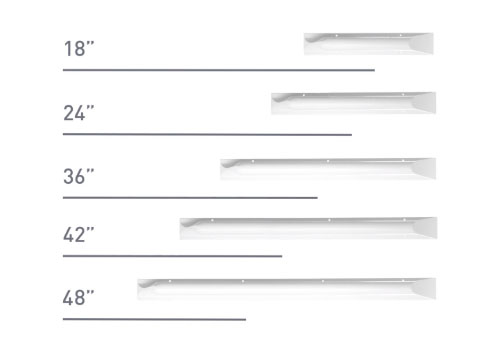

Five Different Lengths
The GB730 Ligature Resistant Grab Bar comes powder coated matte white, includes tamper resistant fasteners and is offered in 5 different lengths: 18”, 24”, 36”, 42” and 48”. It’s a great addition to any patient’s bathroom.
GB730 Grab Bar
Engineered for safety, durability, and versatility, the GB730 Ligature Resistant Grab Bar sets the standard for secure, multi-faceted installation and infection control in behavioral healthcare environments.
Specifications
| Graspable Length | Installation Length |
| 18″ | 28.4″ |
| 24″ | 34.4″ |
| 36″ | 46.4″ |
| 42″ | 52.4″ |
| 48″ | 58.4″ |
- Can be mounted horizontally, vertically, angled, or back to back on a 90-degree corner
- Optimized profile to prevent water from trapping inside
- Open end allows for single wipe cleaning
- Will drain naturally when mounted on a -1 degree or greater slope

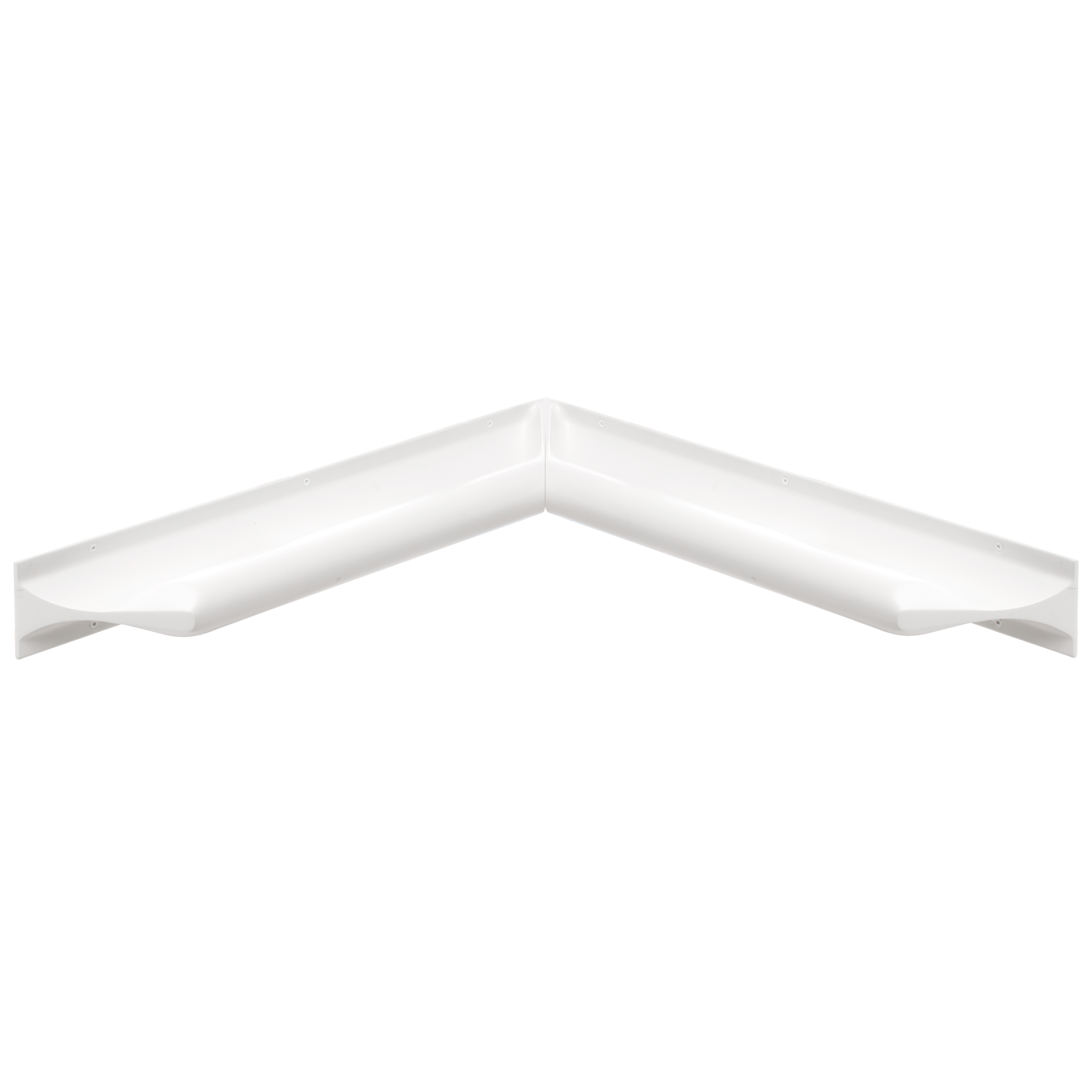

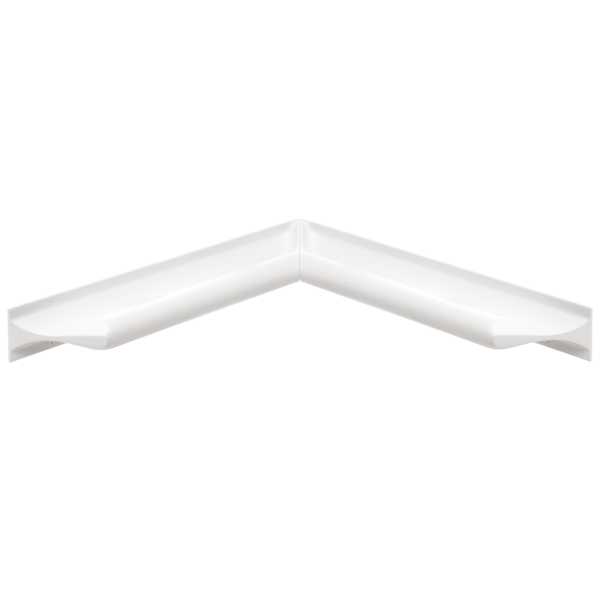

- Two can be mounted together, back to back on a 90-degree corner to create a corner grab bar
- Mounted from front of wall
- Unit secured with tamper resistant stainless-steel screws (included)
- Aluminum construction with matte white powder coat exterior
- Pick free joint caulk recommended
- ADA Compliant when installed per published ADA requirements
