Key Features

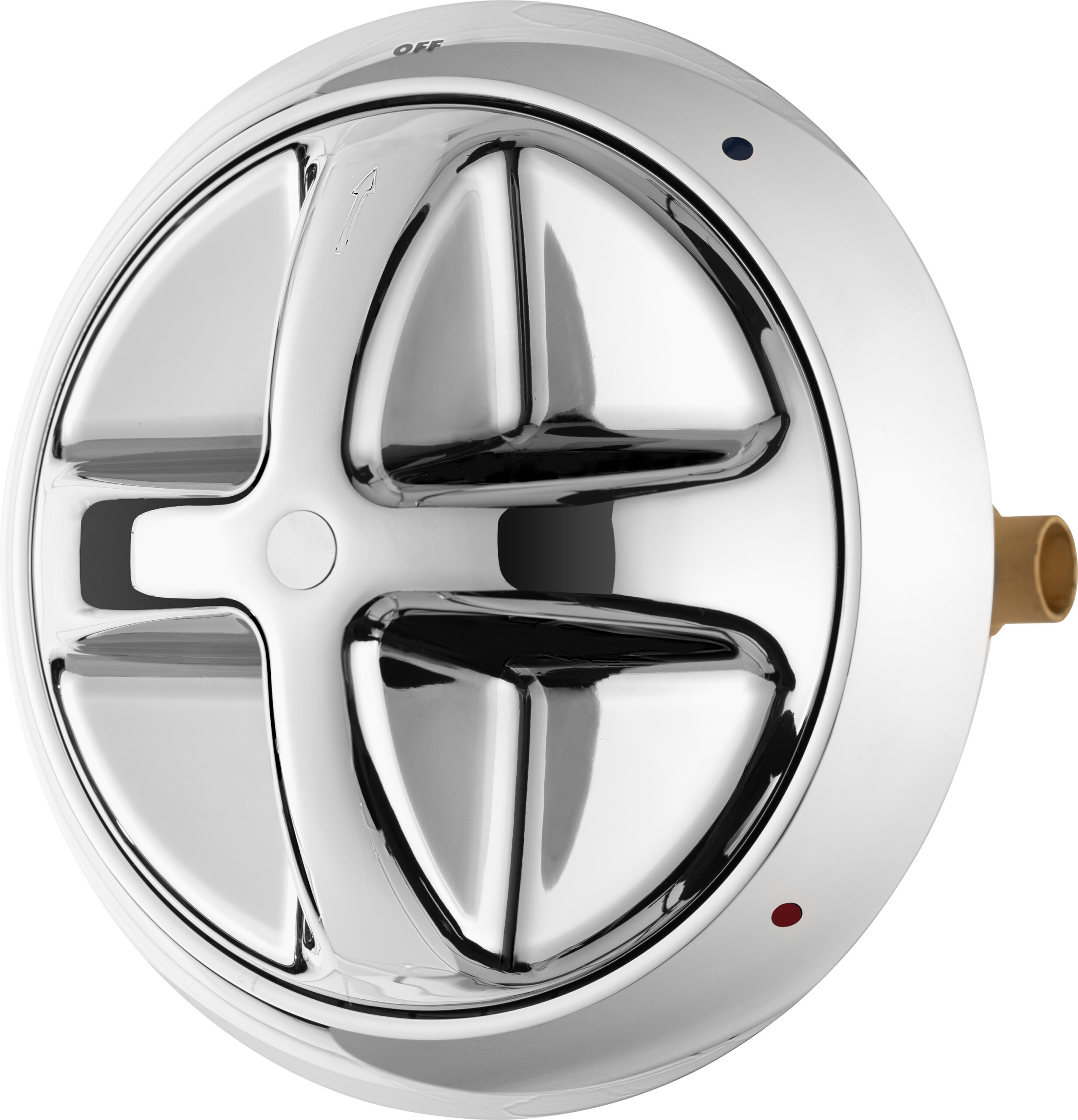

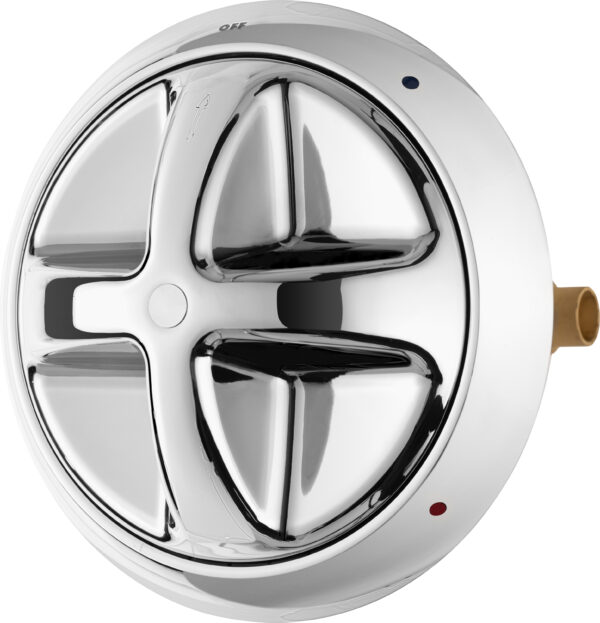

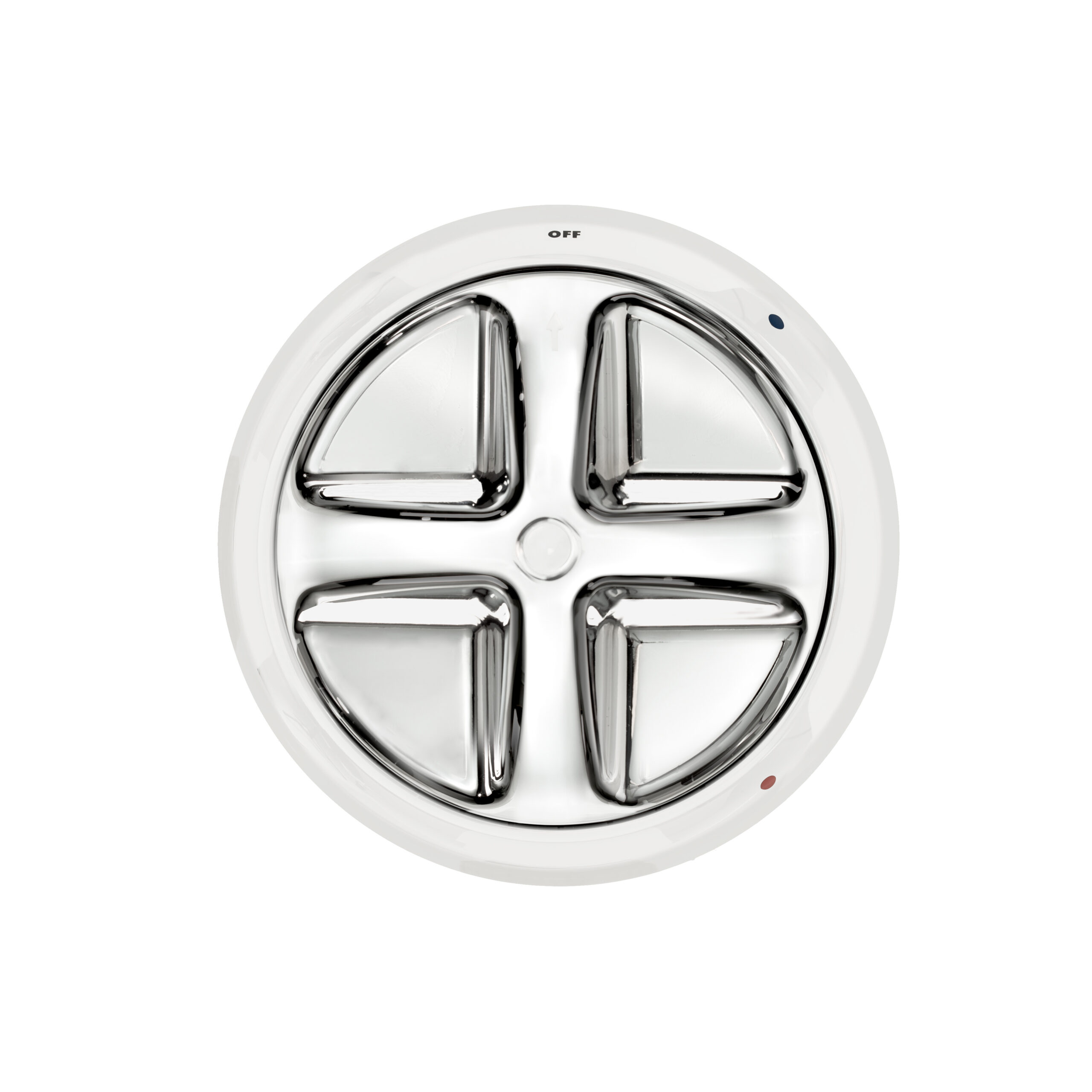

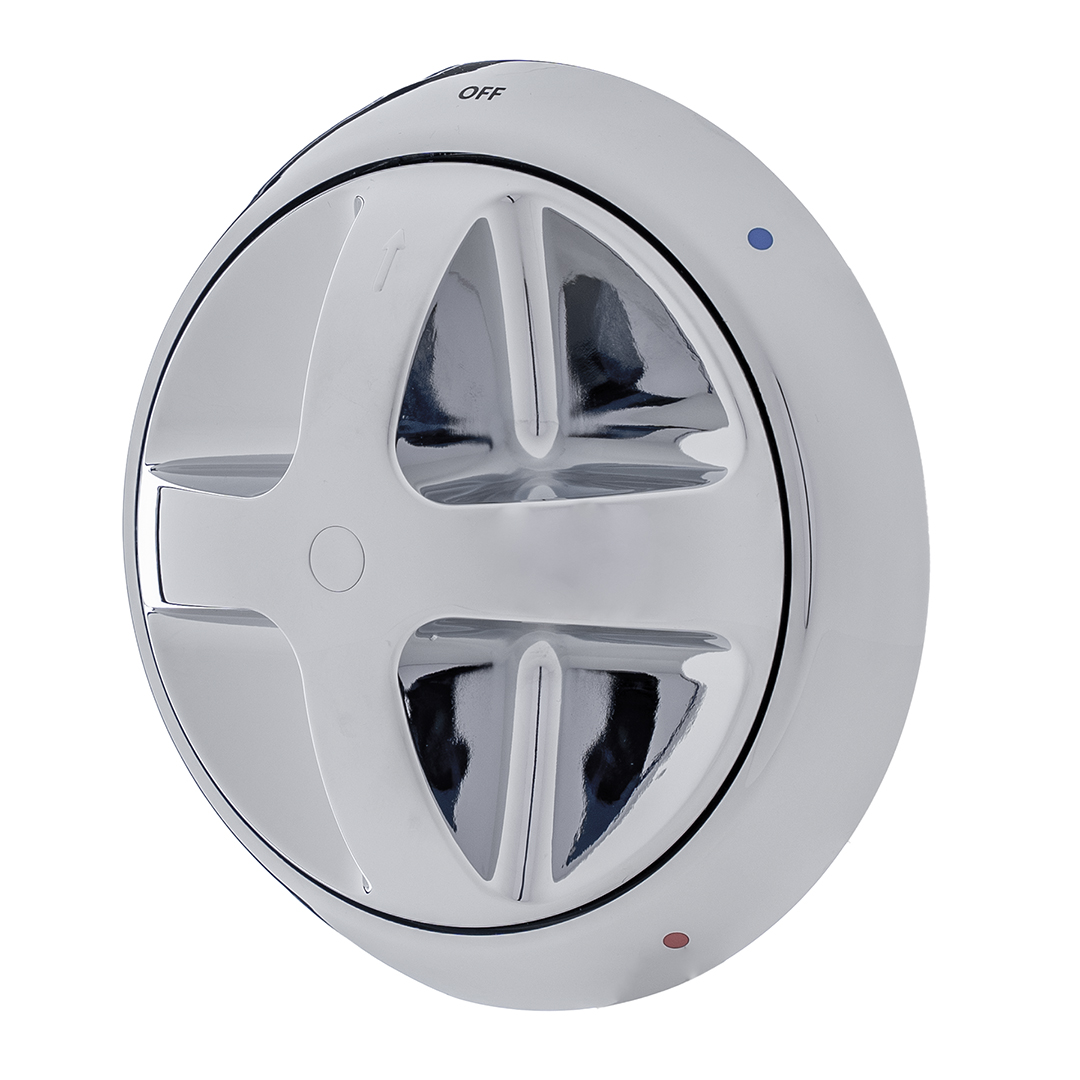

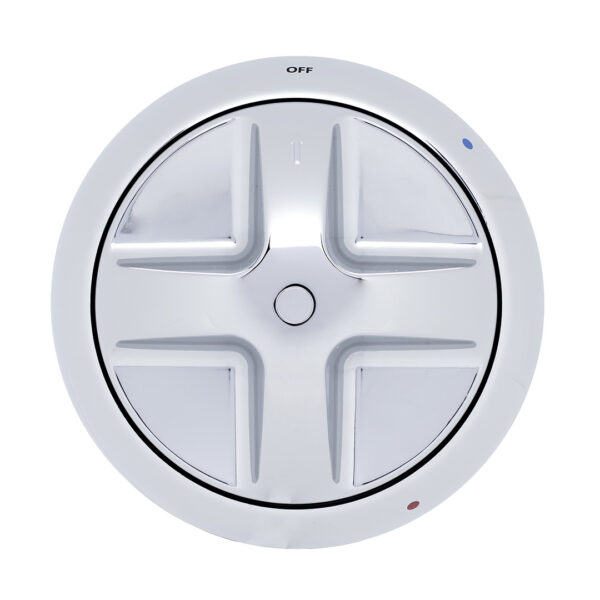

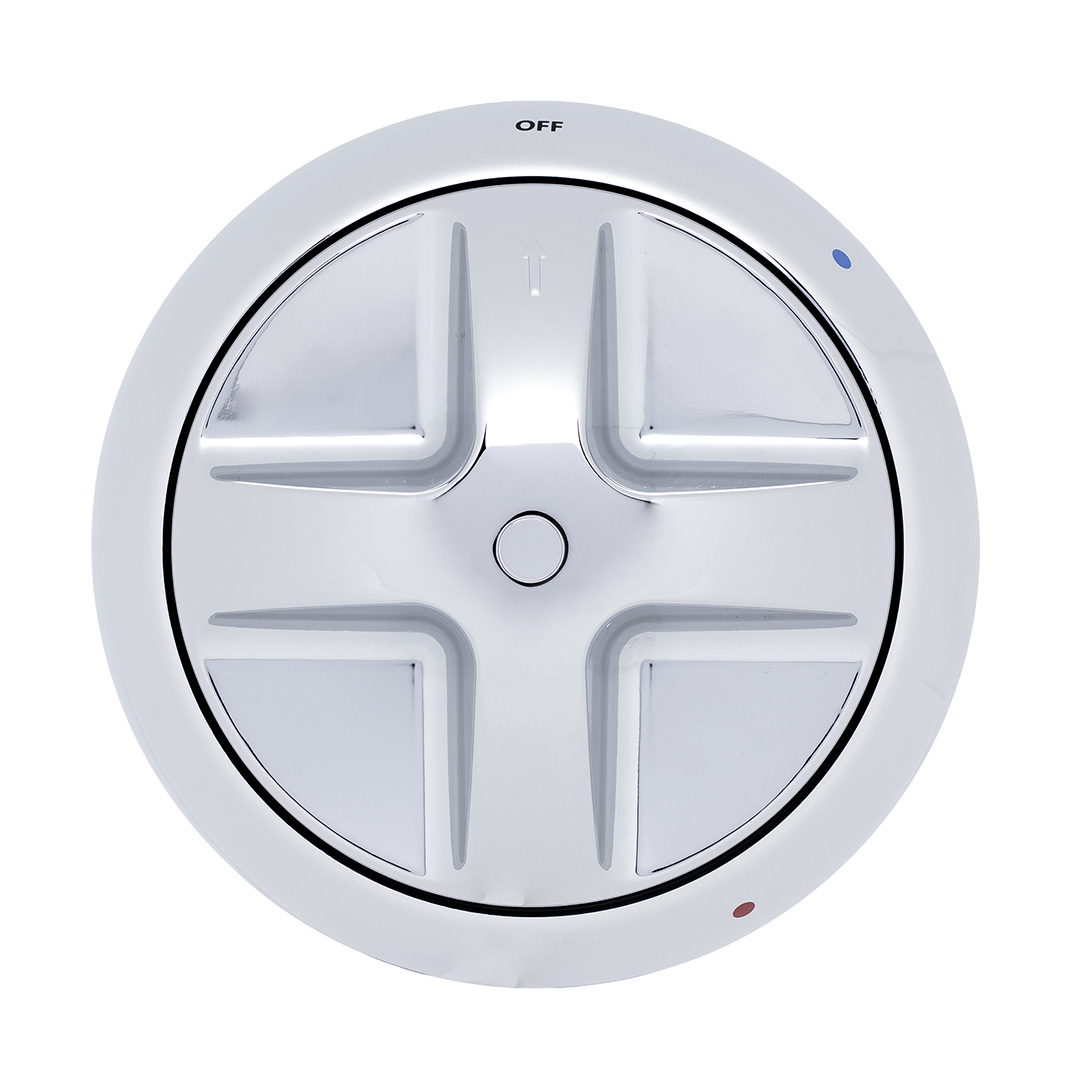

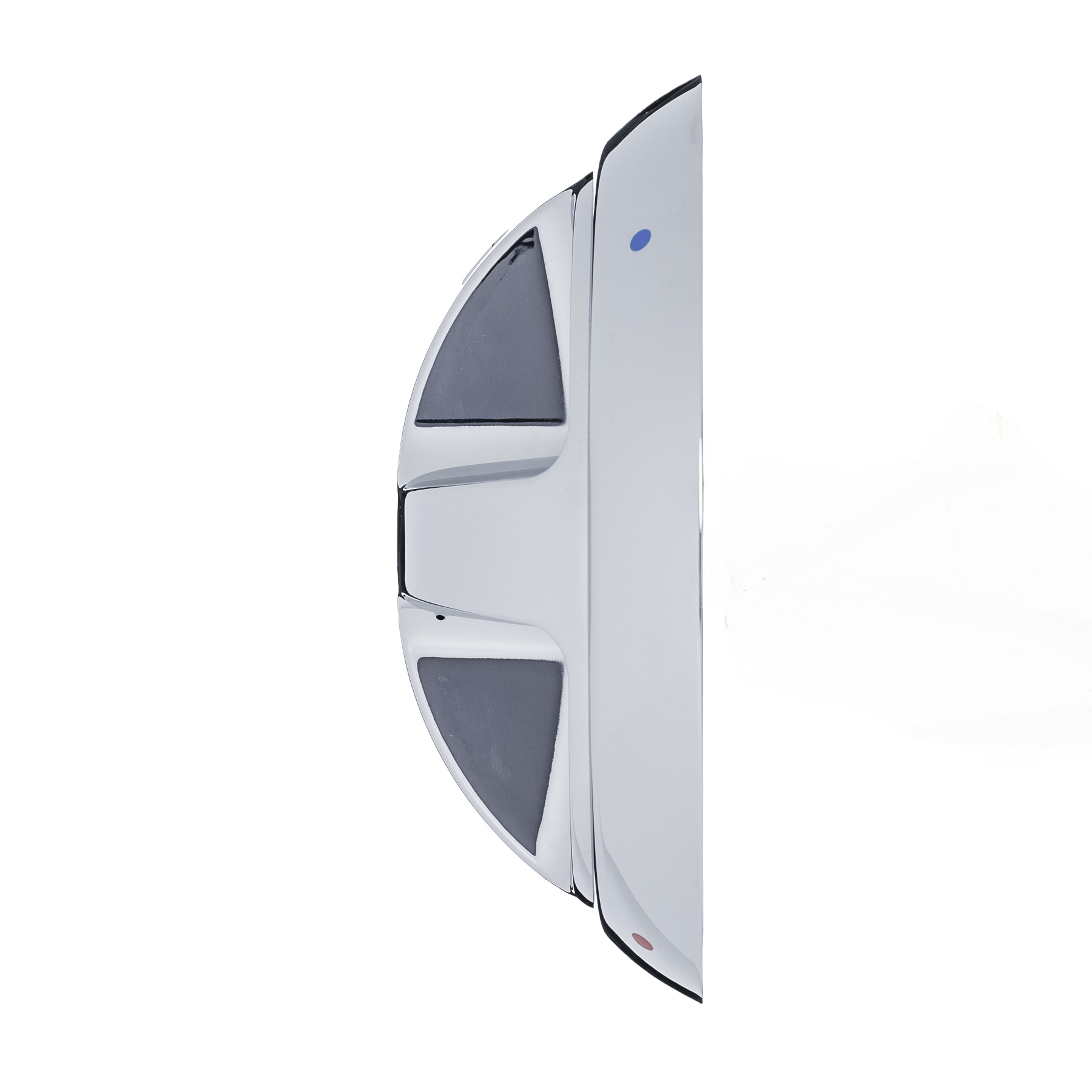

- Ligature Resistant Handle: Ergonomically designed for easy grip without requiring pinch or grasp, and meets ADA pull force standards.
- Smooth Operation: An integrated anti-friction ring ensures tight fit and fluid handle movement.
- Redundant Sealing: Built-in moisture protection safeguards internal components for long-term performance.
- Adjustable Temperature Control: Equipped with an anti-scald mechanism and a temperature limit stop for user safety.
- Versatile Installation: Features a four-port valve with ½” NPT/female copper sweat inlets and outlets; can be installed back-to-back and accommodates variable rough-in depths.
- All-Metal Construction: Durable brass valve body with a zinc handle and escutcheon plate, built for strength and resistance to abuse.
- Certified Safety Compliance: Tested and approved to meet ADA, UPC, CUPC, ASME A112.18.1-2012 / CSA B125.1-18, and ASSE 1016 standards. Also recognized by the NYS Office of Mental Health for patient safety compliance.
BRASS
VALVE BODY
CHROME PLATED ZINC
HANDLE
CHROME PLATED ZINC
ESCUTCHEON PLATE
Specifications
- Maximum Operating Pressure: 80 PSI (static)
- Minimum Operating Pressure: 20 PSI (flowing)
- Operating Temperature Range: 40°F to 140°F
- Shipping Weight: 9 lbs.
