SF372

Lead Free Mini Thermostatic Mixing Valve

Lead Free Mini Thermostatic Mixing Valve

Lead Free Mini Thermostatic Mixing Valve

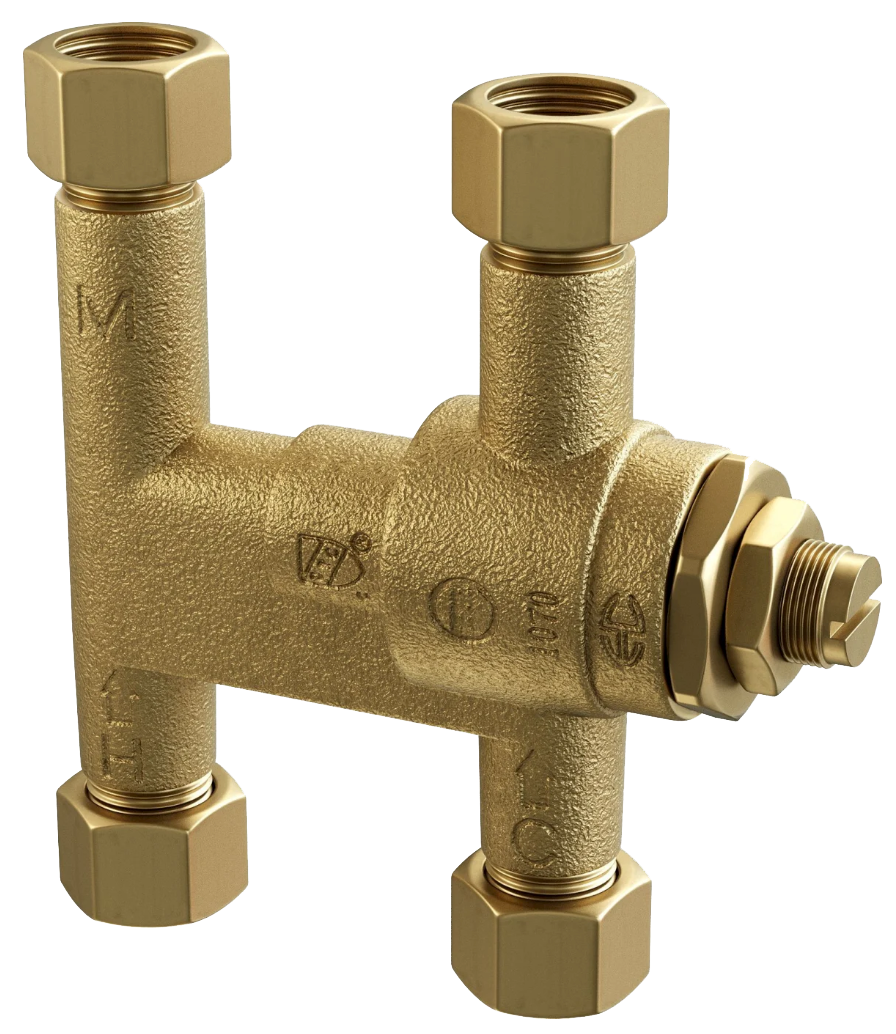

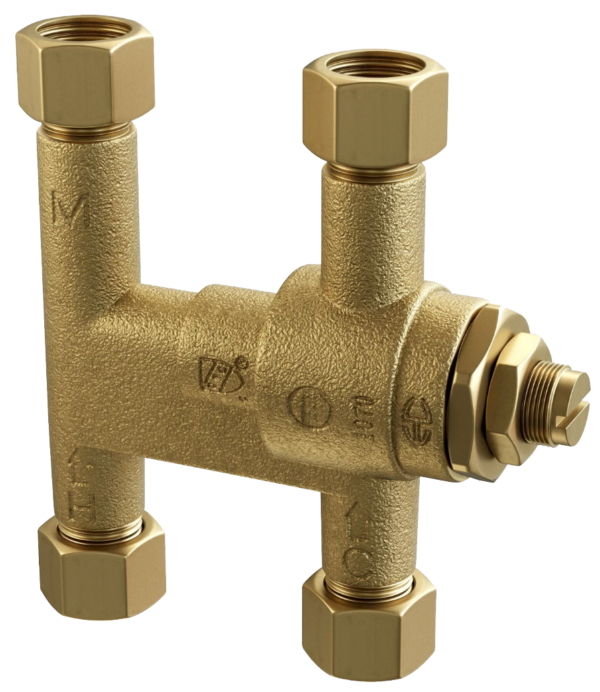

The SF372 3⁄8″ (10mm) compression fitting thermostatic mixing valve maintains and limits hot water to desired selectable temperatures between 80°F and 120°F (27°C and 49°C) with flow rates as low as 0.5 gpm (1.9 lpm) and as high as 2.25 gpm (8.5 lpm). The mixing valve is listed to ASSE Standard 1070 for single fixture applications and IAPMO cUPC. The SF372 features Lead Free* construction to comply with Lead Free* installation requirements. The superior flow characteristics of this valve provide temperature control (within ± 3°F) with low pressure drop. As an added feature, the SF372 incorporates dual check valves to protect against cross-flow and integral screens to filter out debris.

CONTACT SALES

Unmatched Temperature Regulation

The SF372 ensures consistent water temperatures, protecting against scalding while maintaining compliance with ASSE Standard 1070 and IAPMO cUPC requirements.

Key Features

  • Lead Free Construction: Compliant with modern safety standards for Lead Free installations.
  • Accurate Temperature Control: Maintains water temperatures between 80°F and 120°F with precision (± 3°F), even at flow rates as low as 0.5 gpm and up to 2.25 gpm.
  • Enhanced Safety: Includes built-in dual check valves to prevent cross-flow and a tamper-resistant locking nut to avoid accidental misadjustments.
  • Durable and Efficient: Features integral strainers with 40-mesh stainless steel screens to filter out debris, ensuring long-lasting performance.

Technical Resources

Technical Data
