Ligature Resistance Construction

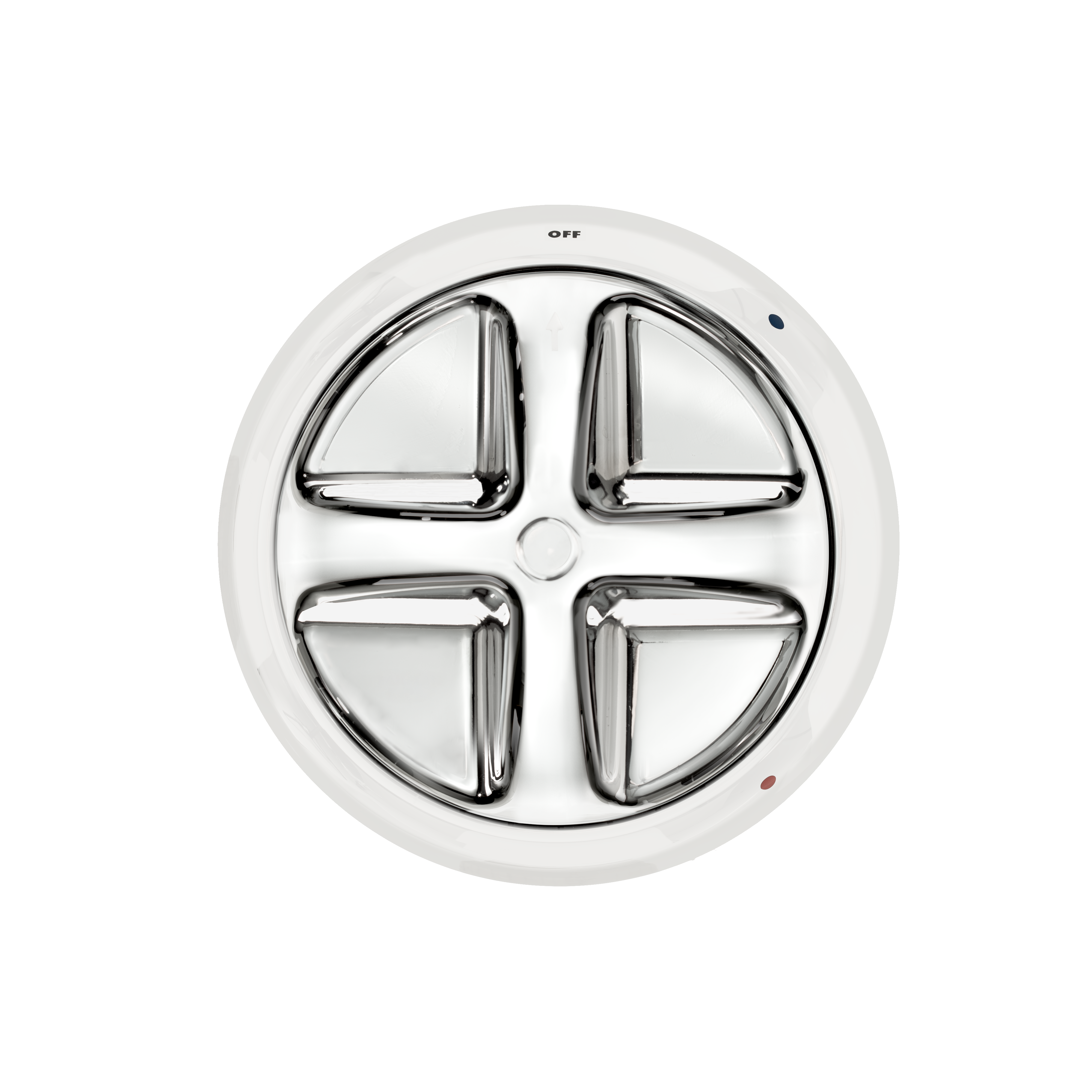

- Designed and developed to be suicide resistant, this shower valve, handle and escutcheon plate is expressly made to prevent injury by ligature. This can be readily seen by the integral handle and escutcheon plate.
BRASS
VALVE BODY
ZINC
HANDLE
ZINC
ESCUTCHEON PLATE
Built-In Anti-Friction Ring Enhances Ease Of Turn
The built-in, anti-friction ring also enhances ease of turn between the integrated escutcheon plate and the recessed handle. These features ensure that both ligature resistance and ADA compliance are maintained.
EASY TURN
NO PINCH AND GRASP
SMOOTH
NO TIE-OFF POINTS
Perfect Fit For Any Bathroom
This unit is composed of a brass valve body, zinc handle and escutcheon plate, with a polished chrome finish. The valve rough-in adjustments are 3 to 3-and-a-half inches from the finished wall to the centerline of the hot and cold inlets of the valve body.
HOT + COLD
ADJUSTMENT VALVES
INTEGRAL
STOPS
REDUNDANT SEALING
PREVENTS MOISTURE MIGRATION
Safe Shower Valve
Other features include redundant sealing to prevent moisture migration, anti-scald mechanism, an adjustable temperature limit stop, a valve body with integral stops, recessed handle with integrated escutcheon plate, a piston type pressure balancing cartridge assembly with built-in check valves, while meeting standard ASME and ASSE codes.
Smooth No Tie-Off Points

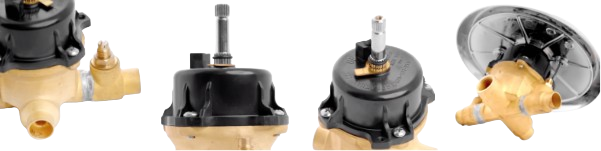

Pressure Balancing Cartridge Assembly
Piston Type
ANTI-SCALD MECHANISM
SETS MAX ACHIEVABLE TEMPERATURE
BUILT-IN
CHECK VALVES
MEETS ASME
+ ASSE CODES
Specifications
- ADA Compliant, easy-grip, ligature resistant handle
- Brass Valve Body, Zinc Handle, and Escutcheon Plate, polished chrome finish, with variable rough-in (template included)
- Anti-friction ring maintains a tight fit with smooth handle operation
- Redundant sealing to prevent moisture migration
- Valve body with integral stops
- Anti-scald mechanism
- Adjustable temperature limit stop
- Piston type pressure balancing/ceramic, regulating cartridge assembly with built-in check valves
- Four-port valve with ½” female copper sweat inlets and shower outlet
- Operating water pressure: 20 – 80 PSI
- Operating water temp: 40 – 140° F
Certifications:
- Meets ASME A112.18.1-2012/CSA B125.1-12 & ASSE 1016-2011 standards
- ADA Compliant
- ASSE 1016 & UPC approved shower valve
Smooth No Tie-Off Points
Pressure Balancing Cartridge Assembly
Piston Type
