SV715

DISCONTINUED Ligature Resistant Shower Panel

DISCONTINUED Ligature Resistant Shower Panel
DISCONTINUED Ligature Resistant Shower Panel - Image 2
DISCONTINUED Ligature Resistant Shower Panel - Image 3
DISCONTINUED Ligature Resistant Shower Panel - Image 4

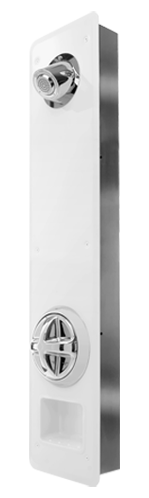

DISCONTINUED Ligature Resistant Shower Panel

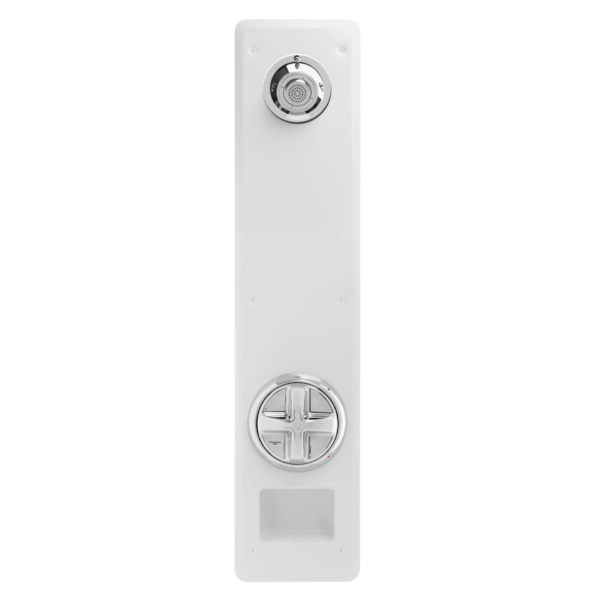

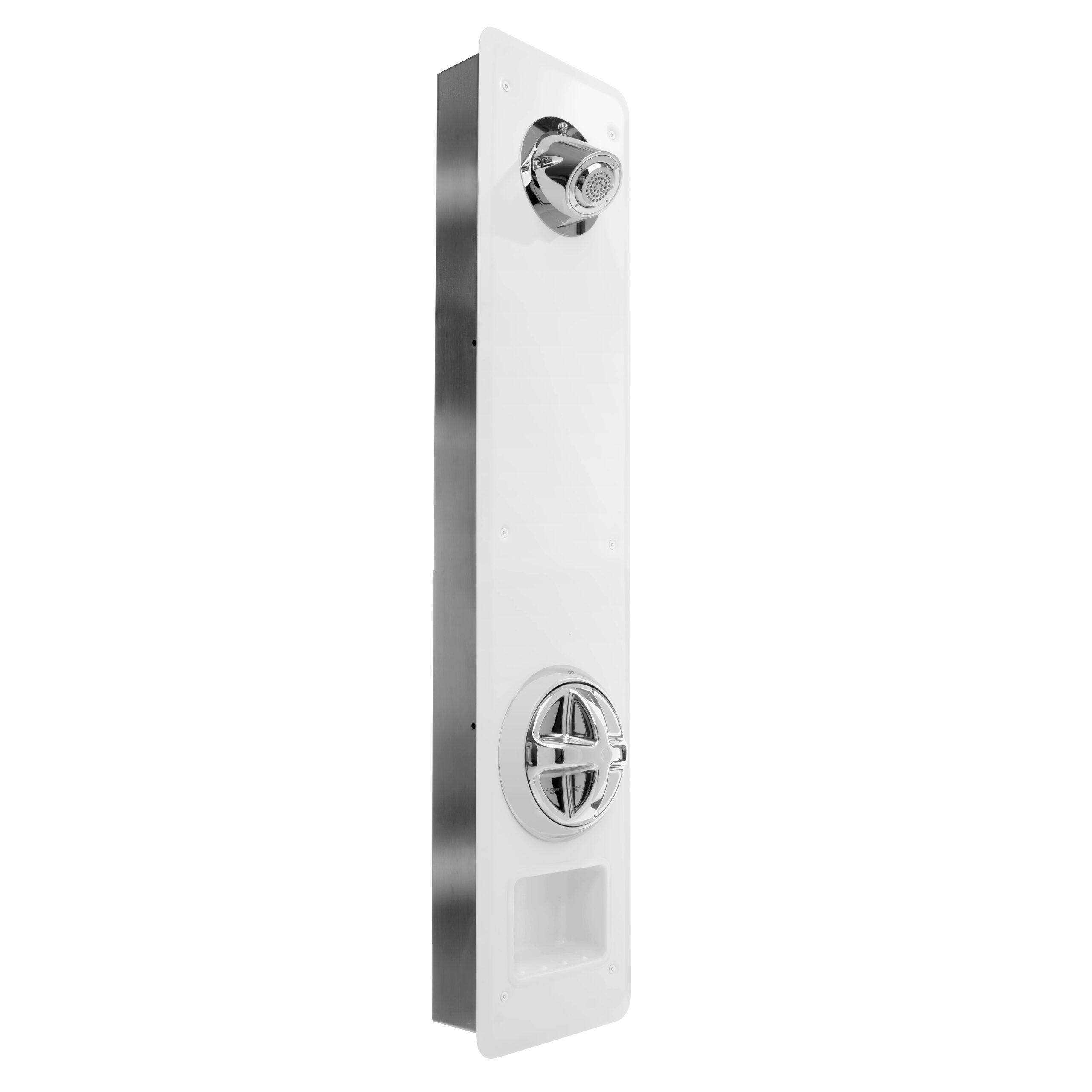

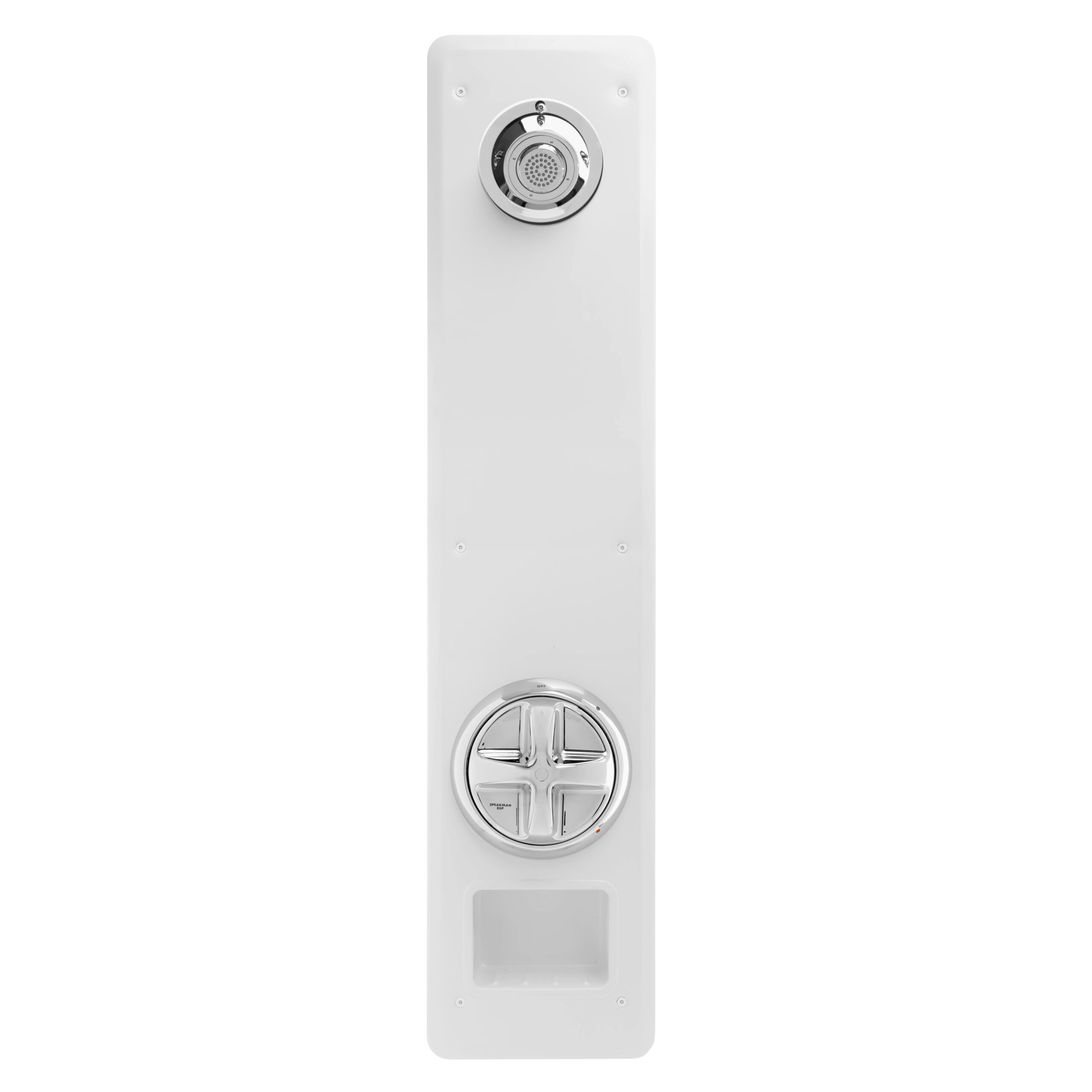

This all-in-one design comes with a ligature resistant, pivoting shower head, shower valve, and integral soap dish, all pre-mounted into the front of the panel reducing install time and connection issues.

CONTACT SALES

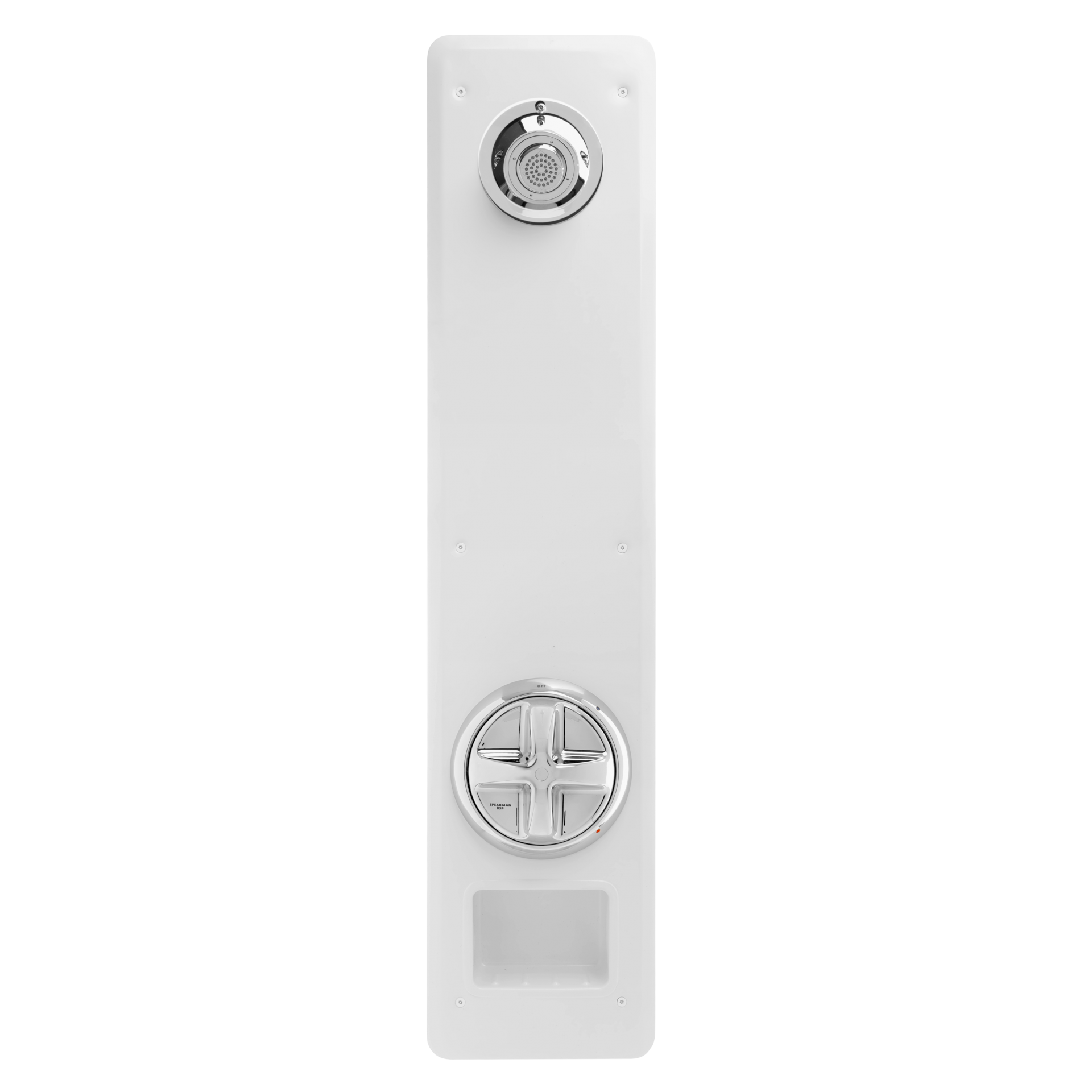

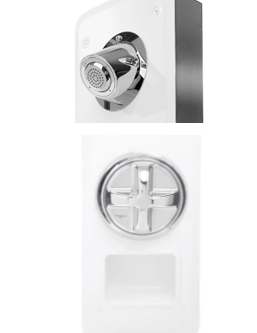

All-In-One Design Solid Construction

PIVOTING SHOWER HEAD

WITH 45 SPRAY CHANNELS

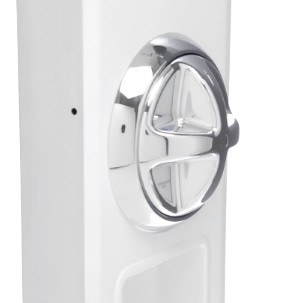

SHOWER HANDLE

WITH INTEGRATED ESCUTCHEON PLATE

SOAP DISH

RECESSED

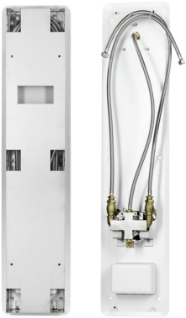

Easy Access Removal Front Panel

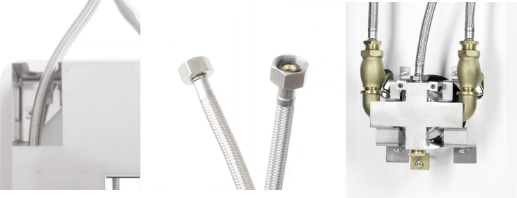

Easy access to replace parts without having to open up walls. By simply removing the front panel, immediate access is given to parts and plumbing normally inside the wall.

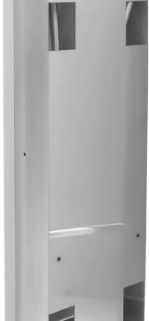

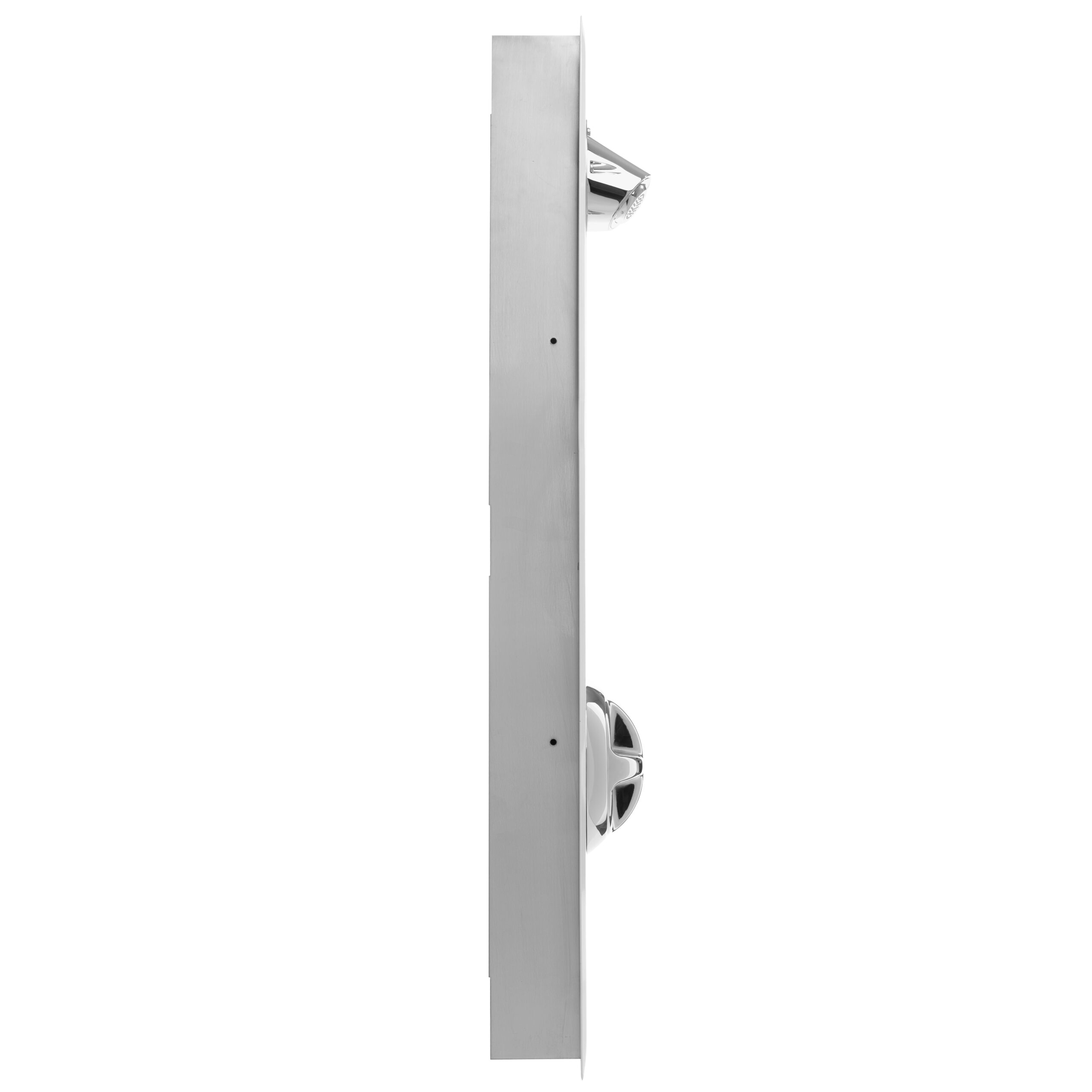

Perfect Fit In A 4-Inch Wall Cavity

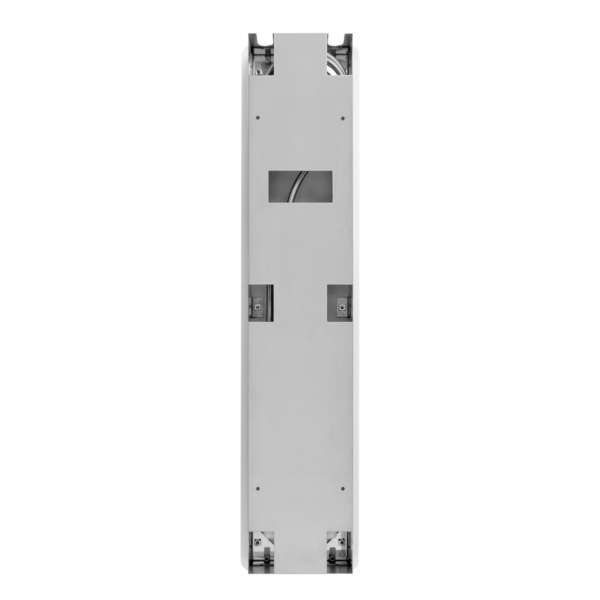

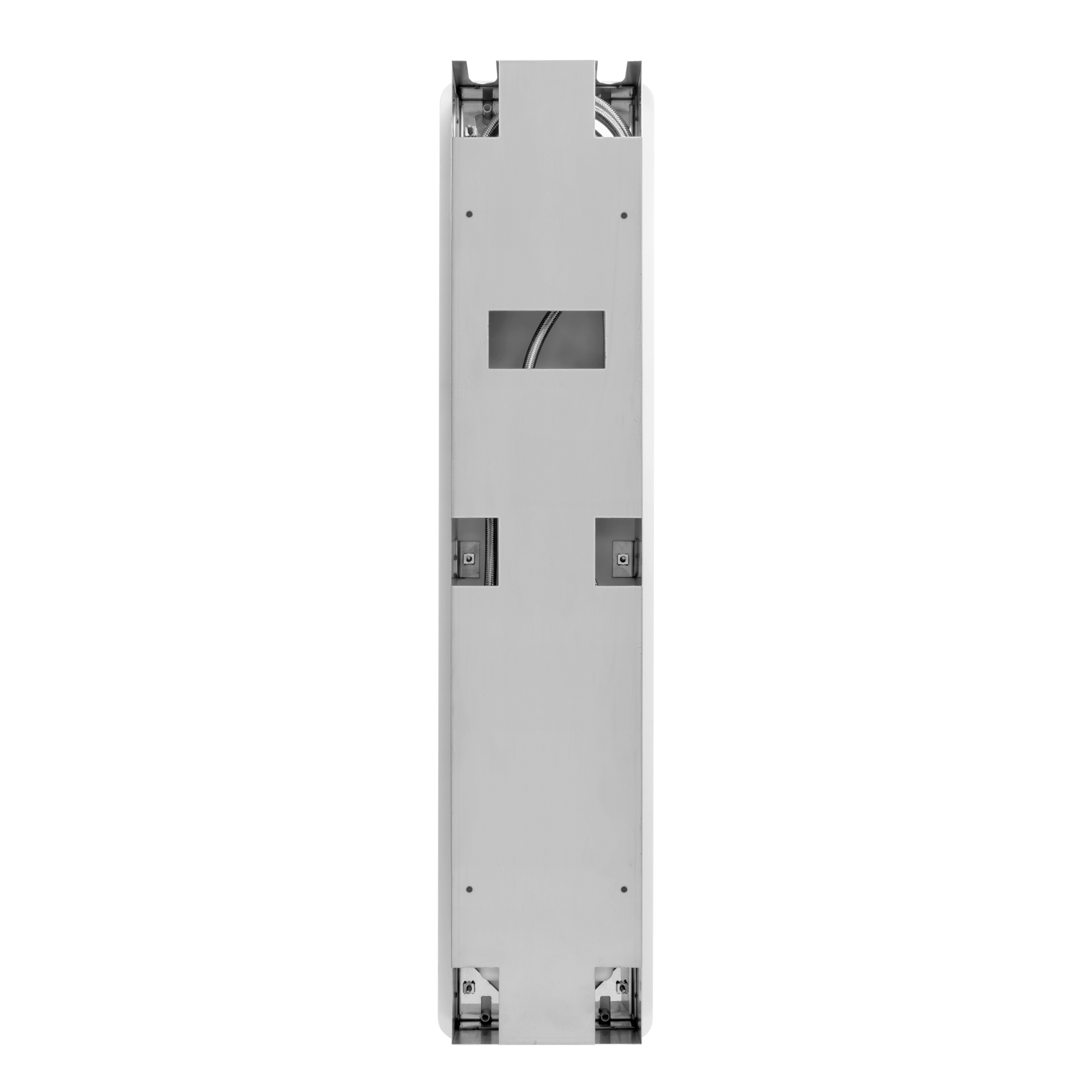

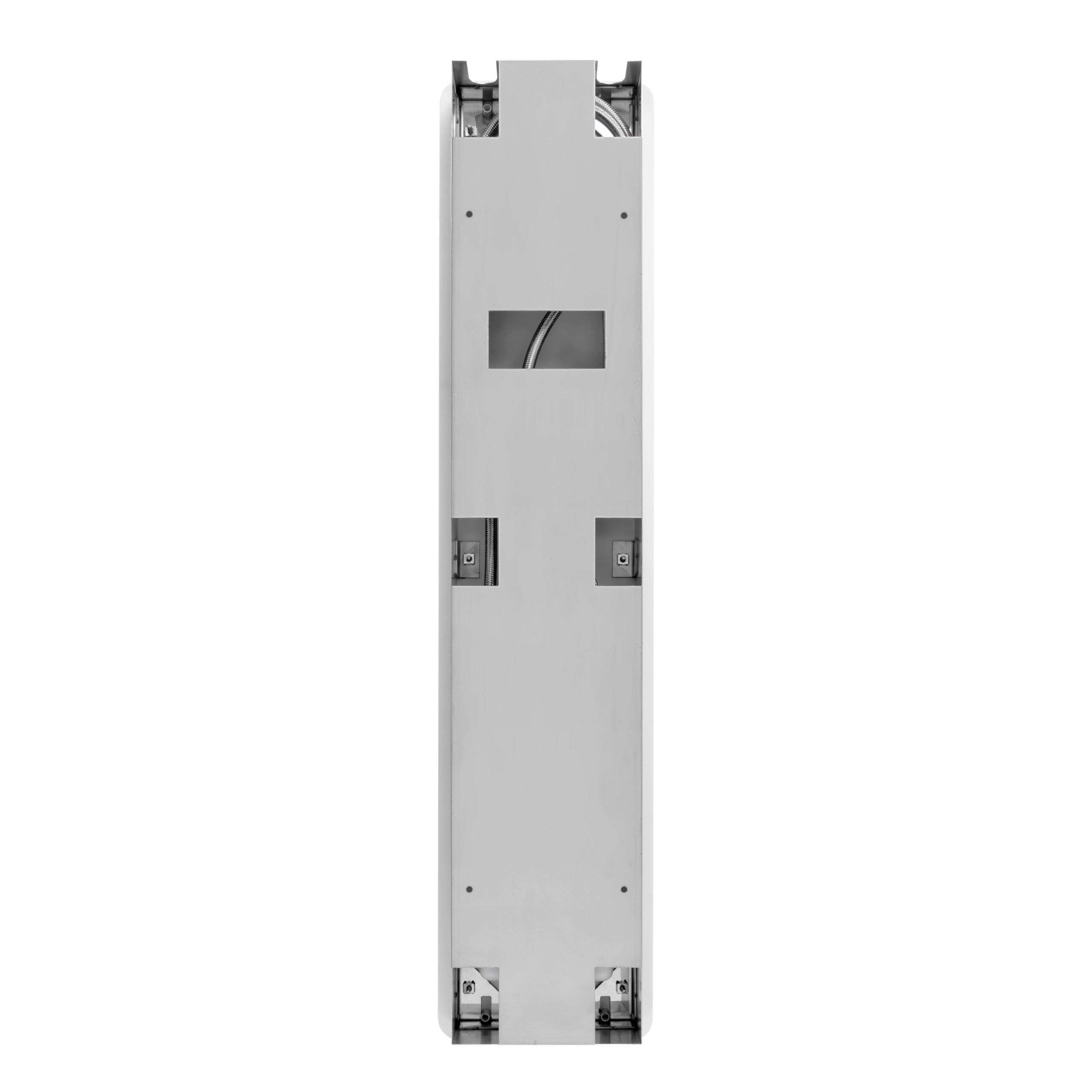

The back panel is easily mounted through multiple side mounting holes accepting fasteners appropriate for the structure behind the unit, and is designed to fit within an existing 4 inch wall cavity.

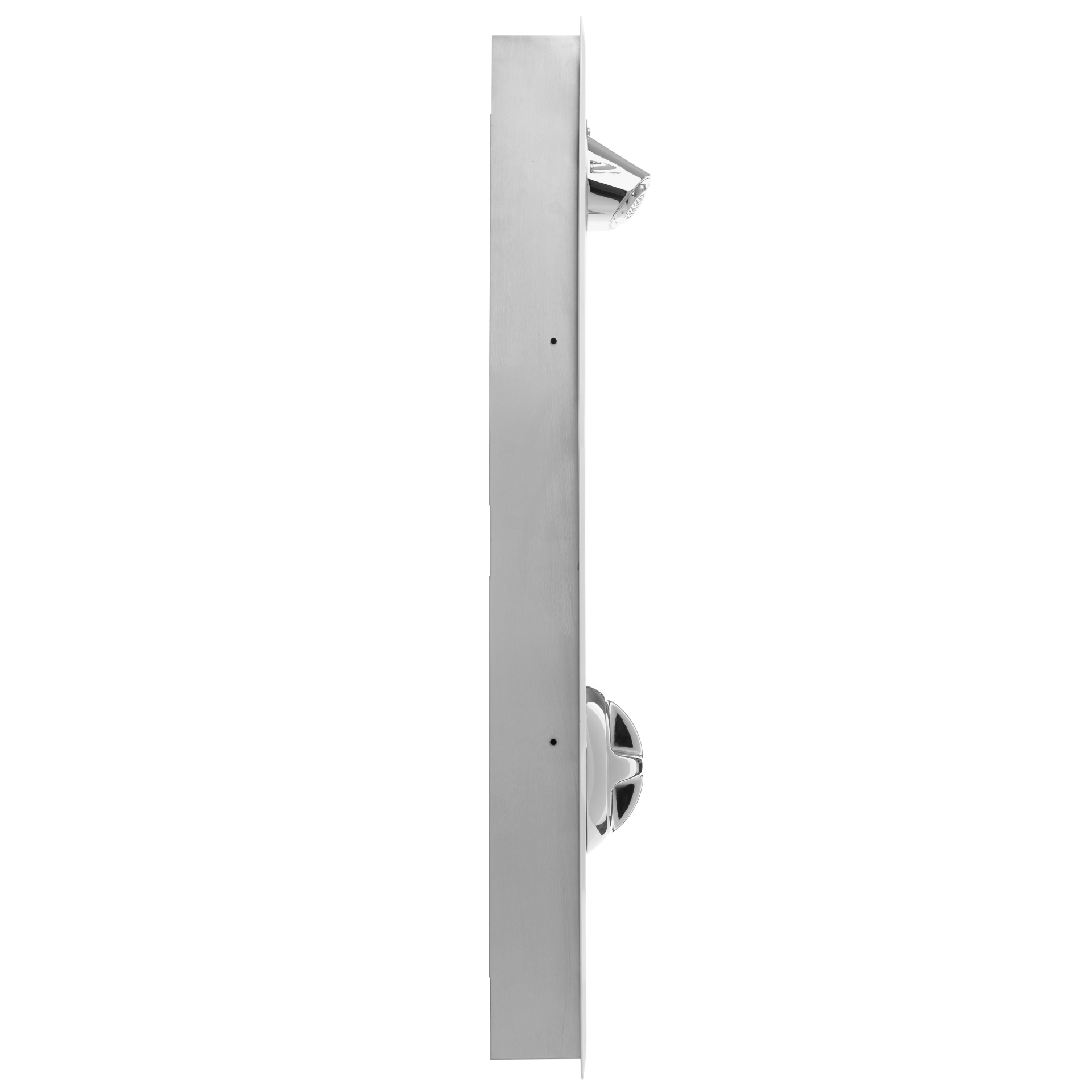

Recessed For Reduced Risk

  • This recessed mounted shower panel reduces ligature risk normally associated with standard systems.
  • Additionally, the shower handle is recessed inside of the integrated escutcheon plate to further deter the risk of ligature.

IAPMO + ASME Certified International Plumbing Codes

Certifications include Uniform Plumbing Code, National Plumbing Code of Canada, International Plumbing Code, IAPMO, and ASME.

CORNERS

WELDED + GROUNDED

All corners are radiused, ground and welded to further deter ligature and provide a secure mount. The SV715 is powder coated matte white.

Specifications

SV715 Specifications:
  • Recess mounted shower panel with removable front panel
  • Cabinet materials are Type 304 stainless steel with seamless welded surfaces
  • Front panel anchored to the mounting frame at 6 points with tamper-resistant screws
  • Front shower panel includes a flanged edge to provide a flush mounting
  • Multiple holes within the mounting bracket for securing unit
  • White powder-coated finished surfaces
  • Recessed soap dish
  • Ligature resistant chrome-plated plated shower head & valve
  • 1.75 GPM/6.62LPM shower head with variable flow control
  • Up and down pivoting SH340 shower head with 2-inch spray face and 42 spray channel



SH340 SPECIFICATIONS:

  • Ligature resistant, polished chrome-plated brass shower head
  • 2-inch spray face with 42 spray channels
  • 1.75 GPM/6.62LPM shower head with variable flow control
  • 20-80psi operating water pressure
  • 40-140F operating water temperature
  • Integral water conservation pressure compensating autoflow device
  • Please take a closer look at our SH340

CERTIFICATIONS:

    • Uniform Plumbing Code (UPC®)
    • National Plumbing Code of Canada
    • International Plumbing Code (IPC®)
    • IAPMO IGC 154-2016
    • ASME A112.18.1-2012/CSA B125.1-12
