Ligature Resistant Shower Panel #SV725

Our SV725 Shower Panel is specifically engineered to reduce ligature risks commonly associated with standard shower systems. Key features include:

Ligature Resistant Design: Equipped with a chrome-plated shower head and shower valve, both designed to minimize ligature points.
Durable Construction: Made from 304 stainless steel with a powder-coated white finish, ensuring both robustness and a clean, modern aesthetic.

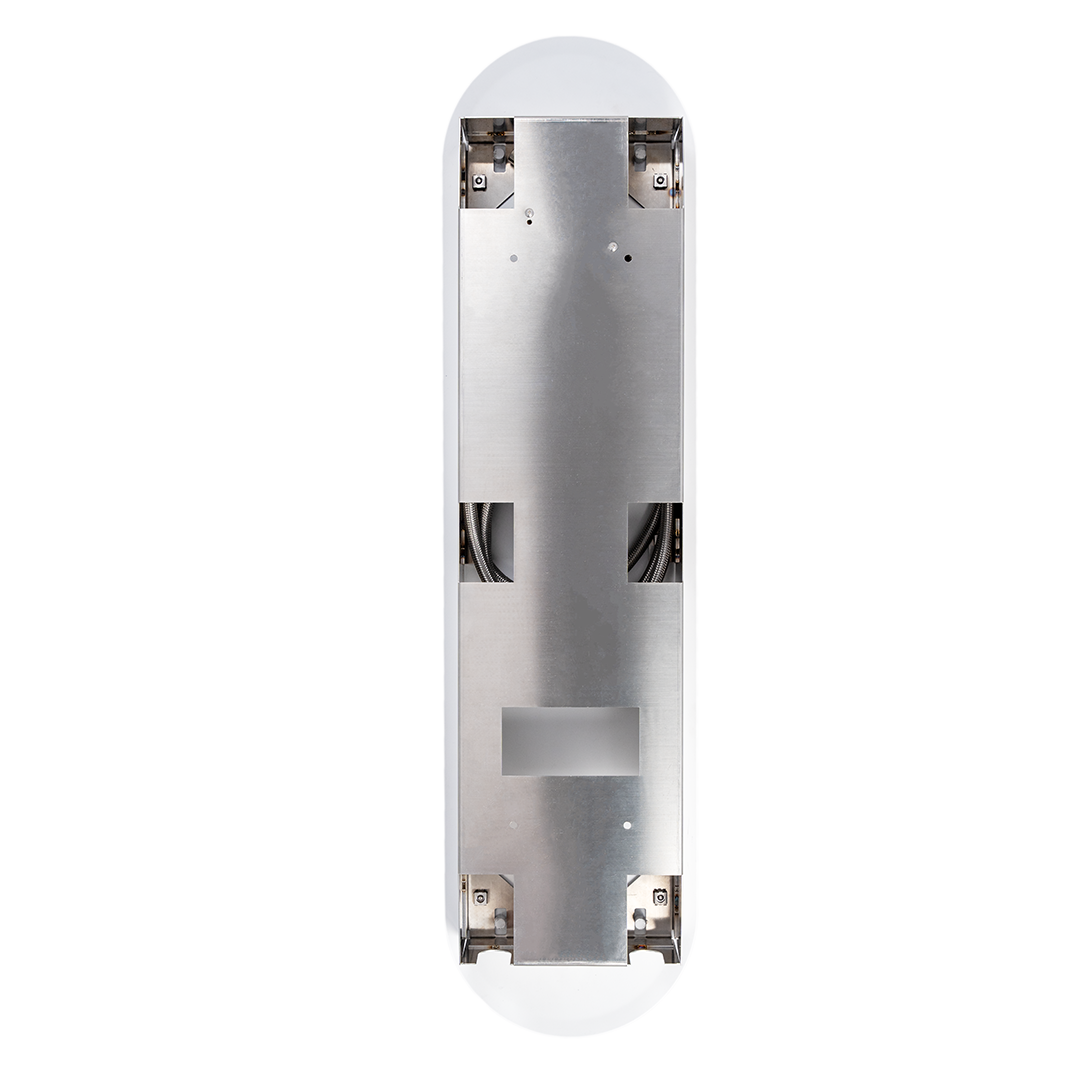

Tamper-Resistant Installation: The back panel is easily mounted using multiple side and rear mounting holes, secured with tamper-resistant stainless steel screws.

The SV725 is not only safe but also practical and user-friendly:

Adjustable Spray Angle: The chrome-plated shower head offers an adjustable spray angle to cater to individual needs.
Easy Maintenance: The shower valve is accessible from the front, making maintenance straightforward and hassle-free.
Flexible Installation: Designed to fit existing 4” cavities, it can accept water supply from both top and rear, ensuring compatibility with a variety of setups.

The SV725 meets rigorous standards to ensure it is suitable for use in demanding environments:

ADA Compliant
Sertified to UPC, CUPC, ASME A112.18.1-2012/CSA B125.1-12, and ASSE 1016 standards.

Specifications

Cabinet materials are Type 304 stainless steel
All exposed finish surfaces are powder coated
Front panel anchored to mounting frame at 6 points
Front panel secured with tamper resistant stainless steel screws
Front panel includes fl anged edge to provide fl ush mounting
Ligature resistant chrome plated shower head with adjustable spray angle
Ligature resistant chrome plated shower valve with pressure balance technology
Valve is accessible from the front for ease of maintenance
Mounting frame has multiple location holes built in for ease of mounting (mounting screws not included)
Water can be supplied vertically from top or horizontal from behind the wall unit
Overall product dimensions allow for ADA compliance

Certifications

Ligature Resistant Shower Panel
