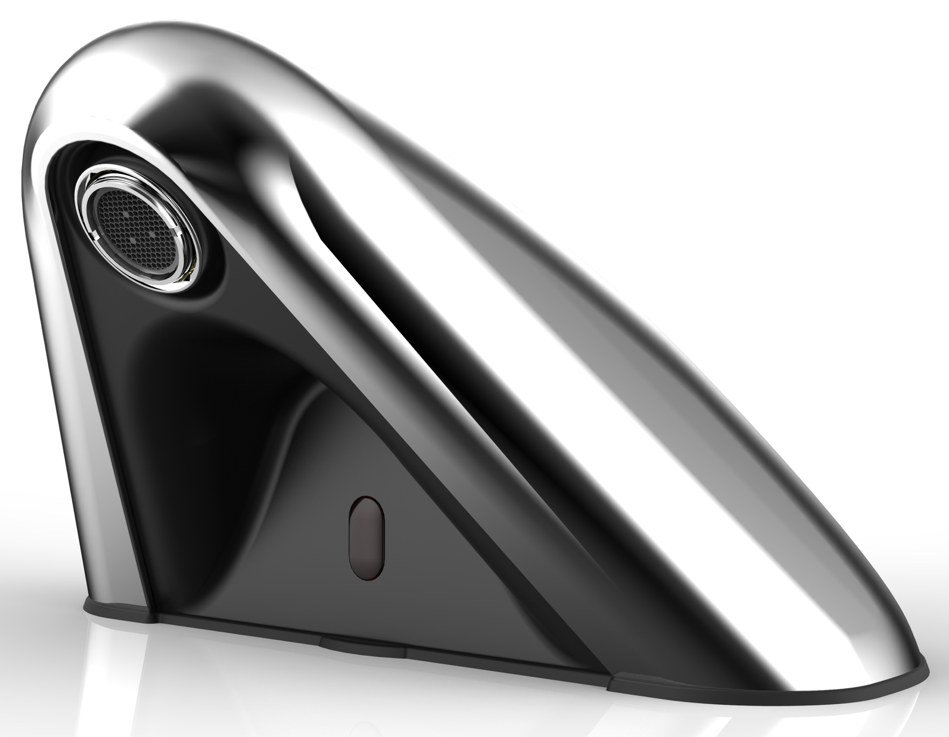

Updated Technology From The Previous SF390 Model
- The new SF400 boasts completely updated technology with an improved sensor and solenoid. The SF400 faucet can be used in retrofit applications and new construction projects.
AC ADAPTER HARDWIRING
RETROFIT + NEW CONSTRUCTION
BATTERY POWER STANDARD
Ligature Resistant Construction
- The new SF400 features the same sloped and rounded profile as the previous SF390, keeping the design ligature resistant and a programmable run time (maximum 60 seconds) for vandal protection.
SLEEK SLOPED ROUNDED
PROFILE
SIXTY SECOND
RUNTIME MAXIMUM
ADA Compliant Features
- The touch-less activation is ADA Compliant and aids with infections control. The faucet also comes with standard in-line filters.
TOUCHLESS ACTIVATION
INFECTION CONTROL
IN-LINE FILTERS
STANDARD
All Metal Chrome Construction
- All-metal housing designed for maximum strength and protection from abuse with a polished chrome finish.
Certified Features
- The SF400 is certified by IAPMO to meet UPC · ASME A112.18.1/CSA B125· NSF 372 · AB 1953 California and National low-lead requirements
- Gold Seal of Approval – NYS Office of Mental Health Patient Safety Standards, Materials and Systems Guidelines
IAMPMO CERTIFIED
MEETS UPC + ASME CODES
MEETS LOW-LEAD
REQUIREMENTS
Specifications
- Fits both a standard 4” centerset and an 8” center set with our optional
conversion kit assembly - Updated operating mechanisms (Electronic module, Solenoid and Power Pack which are readily serviceable from under the counter), standard in-line Filters, and Sensor Module design
- Available in either battery (six 1.5v AA batteries) or AC power
- Programmed vandal protection maximum run time of 60 seconds
- Includes a 1.2 GPM (4.5 L/min) hygienic laminar flow outlet
- Includes an under counter mechanical mixer
- Mixer includes check valves for cross flow protection
- Inlet Supply: 3/8” compression with male threads for already mixed Cold and Hot Water
- Can be optionally fitted with an ASME 1070 thermostatic valve
- This faucet has an operating range of 20-80psi
- Pre-assembled for simple installation
- All metal housing designed for maximum strength and protection from abuse with a polished chrome finish
IMO/Cut Sheet/Submittal
